Experience the perfect balance of clinical power and ultimate portability. The Nu-tek SonicLite is engineered for the modern practitioner, delivering advanced therapeutic ultrasound with an intuitive interface. Whether in the clinic or on the move, its lightweight design and battery-powered operation ensure you can provide effective treatment anywhere, anytime.

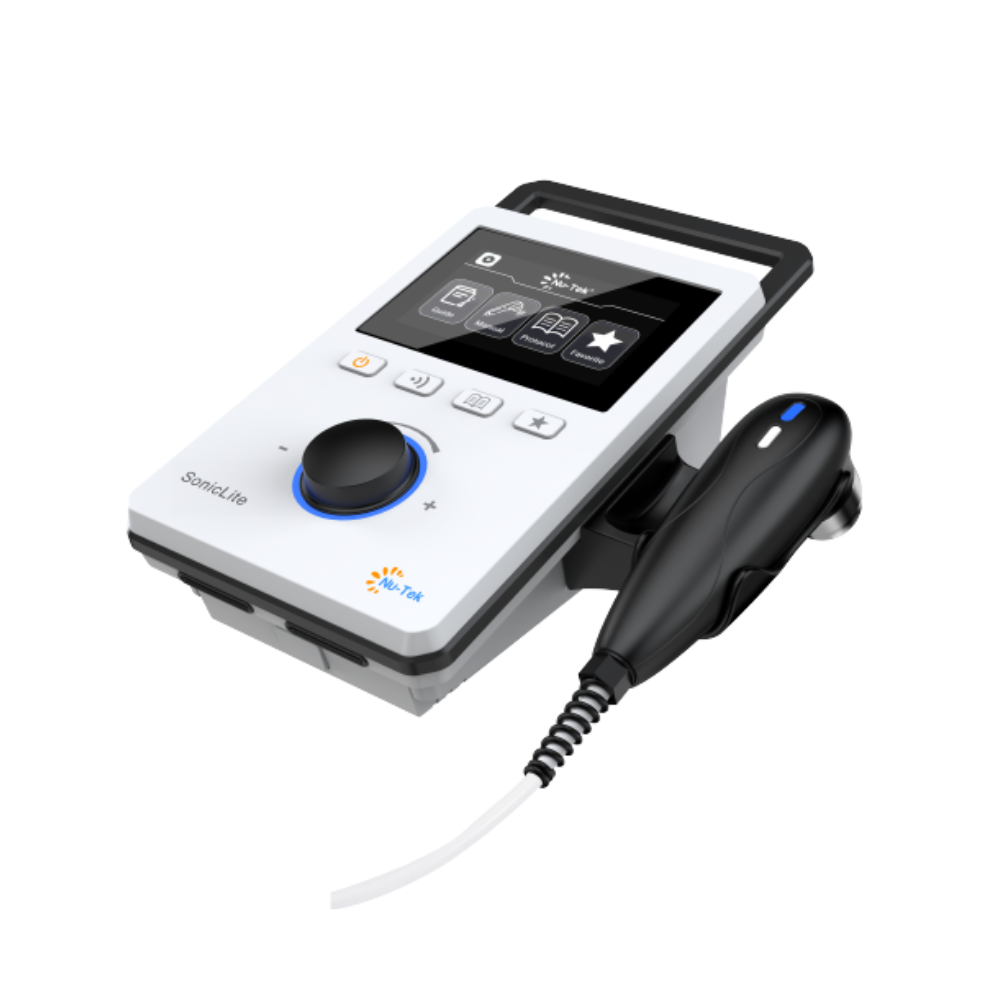

Experience advanced ultrasound therapy with the Nu-tek SonicLite, designed for professional performance and on-the-go convenience. This compact, lightweight unit offers dual frequency capability (1 & 3 MHz) and a 5cm² transducer, making it ideal for a wide range of therapeutic applications both in-clinic and in the field.
Equipped with a vibrant 5-inch touch colour screen, the SonicLite features intuitive navigation and quick parameter guidance, allowing clinicians to easily select from 45 preset programs or customise and store their treatment protocols. Its Contact Control technology ensures treatment integrity by automatically stopping ultrasound output when adequate skin contact is not detected.
Built for mobility, the included battery module provides full functionality without the need for direct power, giving you the freedom to deliver treatments wherever they’re needed.
Perfect for physiotherapists, sports clinics, and mobile practitioners, the Nutek SonicLite delivers professional-grade ultrasound therapy—wherever you need it.
Features:
- Dual Frequency: 1 MHz & 3 MHz for deep and superficial treatment options
- 5" Touchscreen Interface: Easy-to-use, color display with quick parameter selection
- 45 Preset Programs + Memory Storage: Tailor treatments to your patient’s needs
- Contact Control Safety Feature: Ensures effective and safe application
- Portable & Rechargeable: Built-in battery for mobile treatments
Specifications:
- Model: UT1021
- Power Supply: AC100 - 240V, 50/60Hz, 1.8 - 1.0A
- Power Output: DC15V, 4A Max
- Battery Module: Lithium-ion, DC22.2V, 2200mAh
- Battery Module Charge Time: +/-3hours
- Unit Dimensions: 291mm x 170mm x 121mm (not including the applicator holder)
- Battery Dimensions: 102mm x 51mm x 29mm
- Unit Weight: 1.5 kg
- Battery Weight: 0.5 kg
- Frequency: 1MHz, +/-10%; 3MHz, +/-10%
- Duty Cycles: 10% - 90%, stepping 10%
- Pulse Duration: 0.67 - 90ms +/-10% (set by duty cycle)
- Pulse Repetition Period: 6.67 - 100ms
- Pulse Repetition Rate: 10 - 150Hz, stepping 10Hz
- Ratio of the Temporal Maximum Output Power to the Output Power: 1.11 - 10
- Output Power: 0.5 - 10.0W (Duty Cycle >80%); 0.5 - 15.0W (Duty Cycle >70%)
- Peak Output Amplitude: 2.0W/cm (Duty Cycle >80%); 3.0W/cm (Duty Cycle >70%)
- Beam Type: Collimated
- BNR (Beam Non-Uniformity Ratio): 5:1 maximum
- ERA (Effective Radiation Area): IEC: 4.0cm; USA: 5.0cm
What is Included:
- Nutek SonicLite Ultrasound Unit

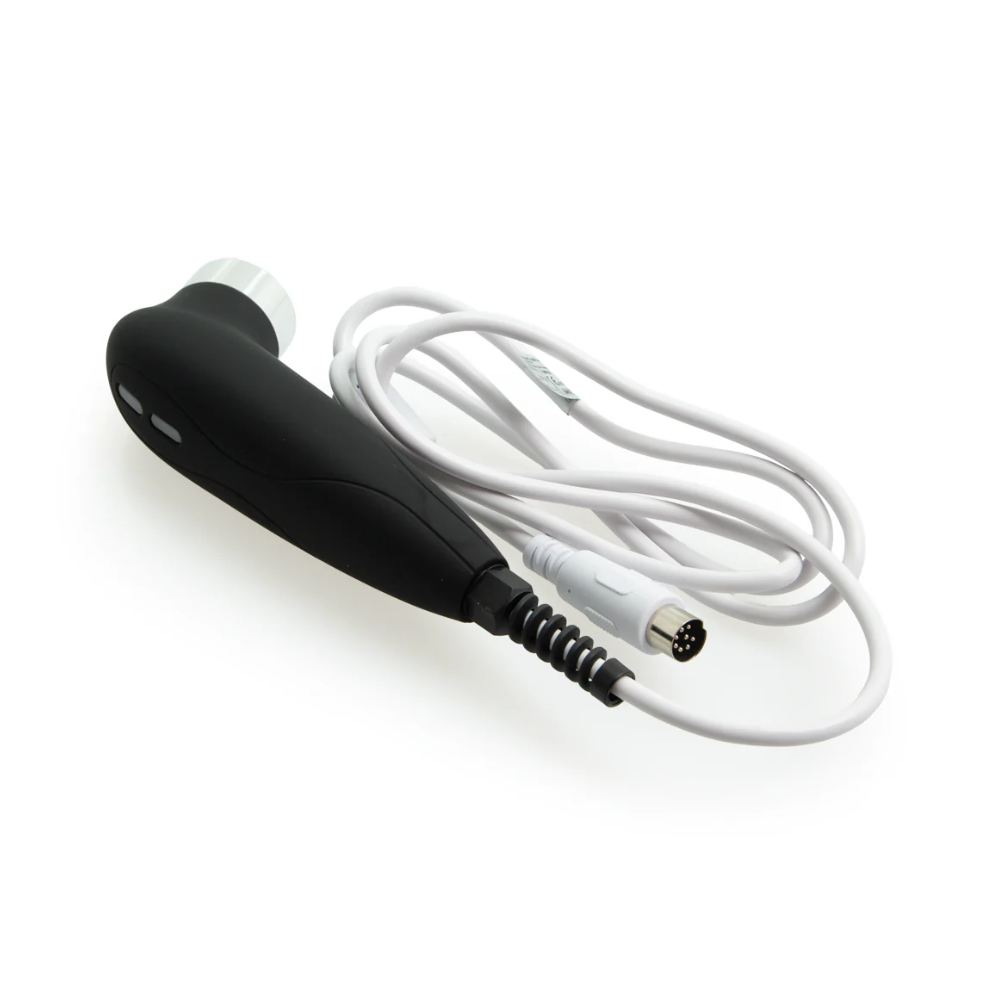

- 5 cm² Dual-Frequency Ultrasound Applicator

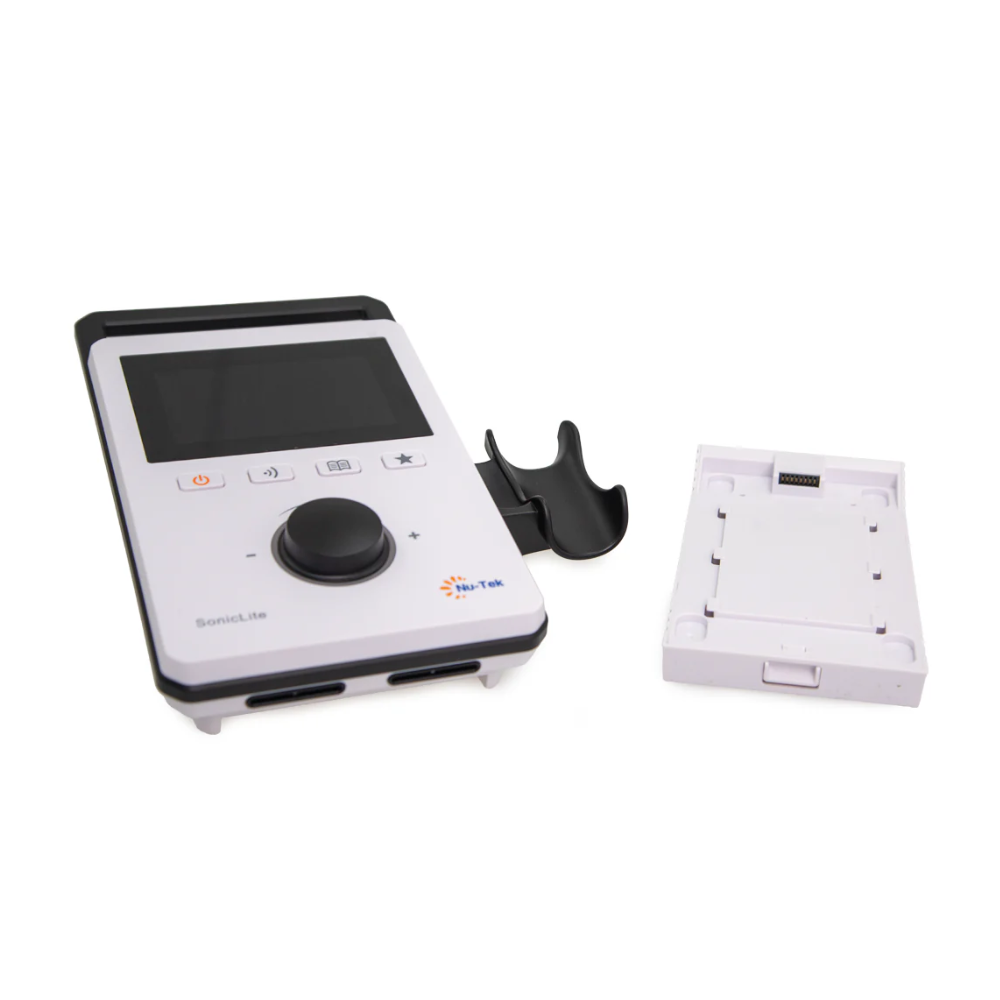

- Rechargeable Battery Module
- Power Cable
- User Manual (on USB Drive)
- Carry Bag
Nappi Code: None
Warranty:
This product is warranted against defects in materials and workmanship for 2 years from the date of purchase. The company will, at its option, repair or replace components which prove to be defective during this warranty period, provided that the replacement or repairs are carried out by the company or its approved agents (HiTech Therapy). Any modifications or repairs performed by unauthorised centres or groups will void this warranty.
The warranty for the ultrasound applicator, battery pack and power cable is 6 months.
