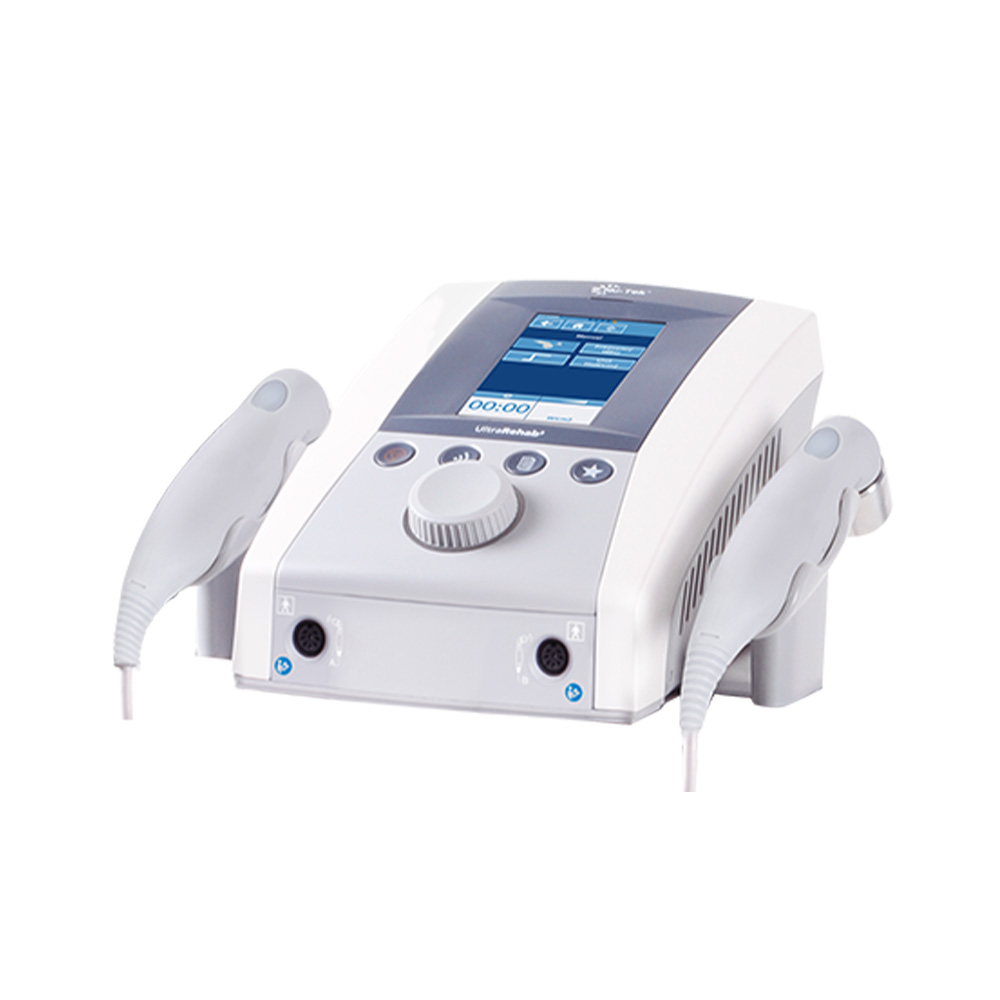

This advanced therapeutic ultrasound system is engineered for professional rehabilitation and sports medicine, providing both thermal and non-thermal effects. It offers easy-to-select programs to target tissues up to 5 cm deep, promoting effective tissue repair, reducing inflammation, and increasing blood flow.
The device offers treatment versatility with 1 MHz for deep muscle and joint issues and 3 MHz for superficial structures like tendons and ligaments. Non-thermal modes utilise acoustic streaming and stable cavitation to enhance cellular activity and nutrient exchange without significant tissue heating.
Designed for clinical efficiency, the unit is compact and lightweight, fitting easily on a tabletop or optional trolley for easy relocation. It features a waterproof ultrasound head and a patient interrupt switch, prioritising safety, comfort, and versatile treatment options.
Features:
- Dual Frequency: 1 MHz and 3 MHz for deep and superficial tissue targeting.
- Max Intensity: 3 W/cm² for effective therapeutic output.
- Operating Modes: Pulsed & Continuous for thermal and non-thermal treatment.
- Programme Range: Full range of therapy programmes with over 80 settable custom programmes.
- Treatment Versatility: All treatment modes are settable, allowing for high customisation.
- User Interface: Smart 5 inch LCD touch screen with high-speed response.
- Ease of Use: One-touch operation for treatment and a Control knob with light indicator.
- Design: Elite design for easy carry, with a light and high-quality build.
- Applicators: Ergonomically designed sound heads in a variety of sizes (5 cm² ERA included; 1 cm² optional).
- Waterproof Head: Waterproof factor of the ultrasound head allows for underwater treatment.
- Safety Control: Patient initiative interrupt switch for patient-controlled safety.
- Configuration: Suitable for Tabletop or optional cart/trolley configuration.
- Expanion Option: Compatible with an optional battery expansion.
What is Included:
- 1 x UT2200 Ultrasound Machine
- 1 x Power cable
- 1 x User manual
- 1 x 5cm Ultrasound head
- 1 x 250ml Ultrasound gel
Specifications:
| Main power： | AC 100-240V, 47-63Hz |
| Weight： | 2kg |
| Dimensions： | 285 x 197 x 153mm |
| Electrical safety class： | Class I, Type BF |
| Safety tests： | IEC 60601-1, IEC 60601-1-2, IEC 60601-2-5, IEC 60601-2-10 |
Ultrasound Specifications:
| Frequency | 1 MHz, 3 MHz |
| Max. Intensity | 3 W/cm2 |
| Pulse frequency | 16 Hz, 48Hz, 100Hz |
| Duty factor | 10-90%, stepping 10% |
| ERA | 1 cm2, 5 cm2 |
| BNR | < 5.0 |
Nappi Code:
None
Warranty:
The Nu-Tek UT2200 comes with a 1-year warranty. This warranty covers any defects in material or workmanship and is limited to the repair or replacement of the product only. The warranty does not cover any damages caused by improper use or handling of the machine. This warranty only applies to the unit itself and not to any accessories.
