The Synergy Manipulation Chiropractic Table brings regional drop techniques, flexion and distraction together on one electric treatment table, giving chiropractors flexibility in how they position and treat each patient. Its peripheral foot bar allows hands-free height adjustment from positions around the base, helping practitioners establish comfortable working access while keeping their hands available for patient support.
Four dedicated drop sections provide cervical, thoracic, lumbar and pelvic drop functionality, with adjustable tension to refine the response. For lower-body treatment, the T-bar guides movement while motorised lumbar traction provides powered adjustment. This combination supports practitioners who use both hands-on techniques and table-assisted movement, with a removable T-bar that clears the foot end when closer access is needed.
Patient support adjusts to suit the individual and the treatment approach. Head width, angle and lateral movement allow positioning for cervical work, while abdominal breakaway support accommodates the torso separately. The extendable footrest adds support for taller patients without changing the upper-body setup. Together, these adjustments help practitioners prepare a suitable treatment position while maintaining access to the region being addressed.
Adjust Height Without Interrupting Your Working Position: Hands-free height control within foot reach around the base.
The peripheral foot bar adjusts table height without reaching for a controller, keeping your hands available for patient support and helping you work with less bending or reaching.
Change Techniques Without Restricting Access: Move between drop techniques and guided lower-body work.
Four drop sections and T-bar-controlled movement support varied techniques on one table. Remove the T-bar when you need closer foot-end access, creating space for your stance and hand placement.
Position Each Patient Without Compromising Support: Adapt support to the patient’s build and treatment position.
Separate head, abdominal and footrest adjustments let you refine support where needed. For taller patients, extend the footrest while retaining the chosen head and torso position.
Chiropractic Treatment Functions:

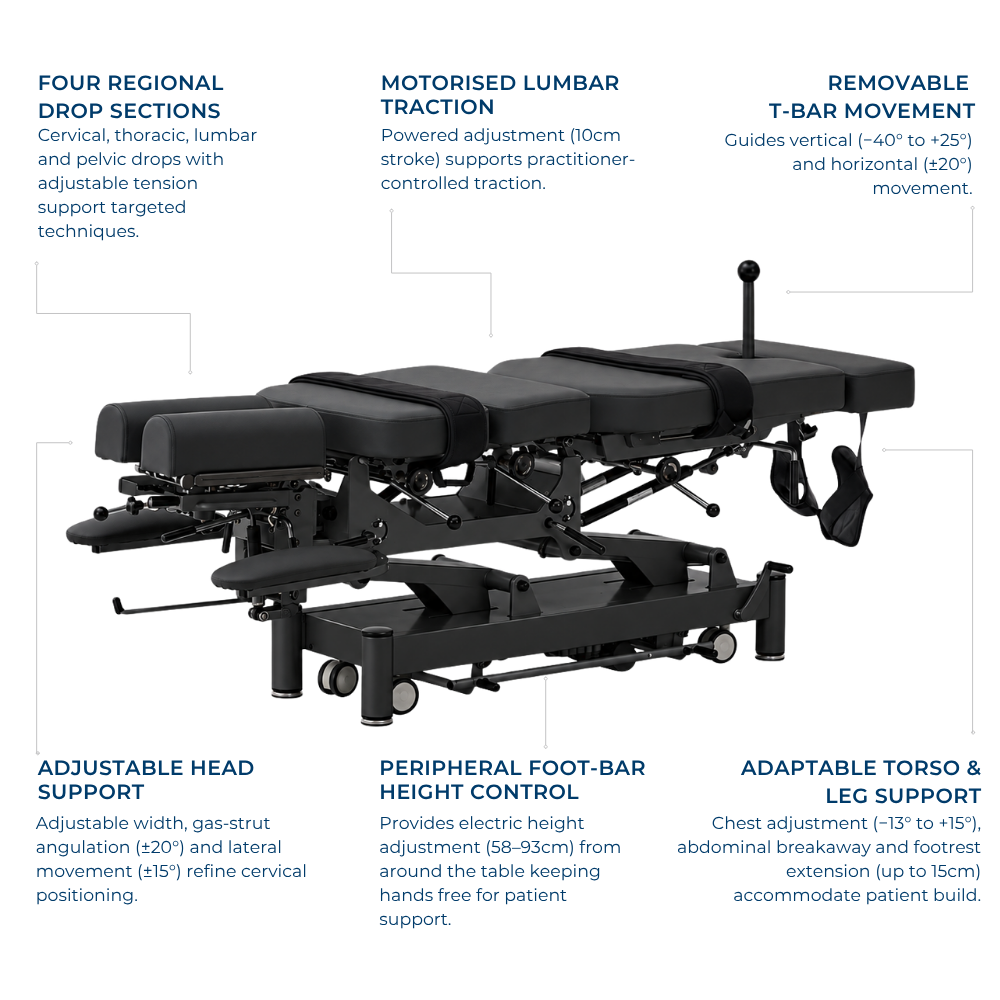

- Four Regional Drop Sections: Cervical, thoracic, lumbar and pelvic sections support targeted drop techniques across several treatment regions on one table.
- Manually Activated Drops with Adjustable Tension: Allow the practitioner to activate the drop sections and refine their resistance for the selected technique.
- Motorised Lumbar Traction: Provides powered traction adjustment with a 10cm stroke as part of the practitioner-controlled treatment setup.
- T-Bar-Controlled Lower-Body Movement: Guides lower-body movement through vertical adjustment from −40° to +25° and horizontal swing from −20° to +20°.
- Removable Flexion Control T-Bar: Opens the foot end for closer access and different working positions when the bar is not required.
Practitioner Height and Control:
- Electric Height Adjustment: Adjusts from 58–93cm to establish a working level suited to the practitioner’s stance, reach and technique.
- Peripheral Foot-Bar Control: Allows hands-free height adjustment from positions around the base, keeping hands available and reducing the need to reach for a controller.
- Two TIMOTION Motors: Provide smooth powered operation for the table’s electric adjustments.
Patient Positioning and Support:
- Width-Adjustable Head Support: Refines the spacing of the cushioned platform to accommodate the patient’s head position.
- Head Angle Adjustment Using Gas Struts: Adjusts from −20° to +20°, allowing head positioning to be refined separately from the main treatment surface.
- Lateral Head Movement: Adjusts from −15° to +15°, providing additional positioning flexibility for cervical work.
- Adjustable Chest Section: Angles from −13° to +15° to refine upper-body support.
- Abdominal Breakaway System: Adapts support beneath the torso to accommodate differences in patient build and treatment position.
- Extendable Padded Footrest: Extends by up to 15cm to provide additional lower-body support for taller patients without changing the upper-body setup.
- Auxiliary Straps: Secure the patient's body to ensure precise, safe, and effective spinal alignment during chiropractic adjustments.
Other Features:
- 250kg Weight Capacity: Provides substantial capacity for everyday clinical use.
- 5cm High-Density Foam: Provides supportive padding across the treatment surface, with a density of 100kg/m³.
- Fire-Retardant PVC Vinyl Upholstery: Complies with BS 5852 and has a 150,000-cycle abrasion rating for repeated surface contact.
- Closed Base Frame: Simplifies cleaning and maintenance around the base.
- Four Retractable Castors with Single-Lever Control: Operate together to simplify repositioning when reorganising the room or accessing the surrounding floor.
Technical Specifications:
- Product Name: Synergy Manipulation Chiropractic Table
- Table Type and Functions: Electric chiropractic manipulation table; drop, flexion and distraction
- Drop Sections: Four — cervical, thoracic, lumbar and pelvic
- Drop Operation and Tension: Manual activation; adjustable tension
- Vertical Drop Mechanism Rating: 100,000 cycles
- Lumbar Traction and Stroke: Motorised adjustment; 10cm stroke
- Lower-Body Movement and Control: Vertical movement and horizontal swing using a removable flexion control T-bar
- Lower-Body Vertical Angle: −40° to +25°
- Lower-Body Horizontal Swing: −20° to +20°
- Height Adjustment and Control: Electric adjustment from 58–93cm using a peripheral foot bar
- Motors: Two TIMOTION motors
- Head Support: Width-adjustable cushioned platform
- Head Angle and Mechanism: −20° to +20° using gas struts
- Head Lateral Movement: −15° to +15°
- Chest Section Angle: −13° to +15°
- Abdominal Support: Breakaway system
- Footrest: Padded; extends by up to 15cm

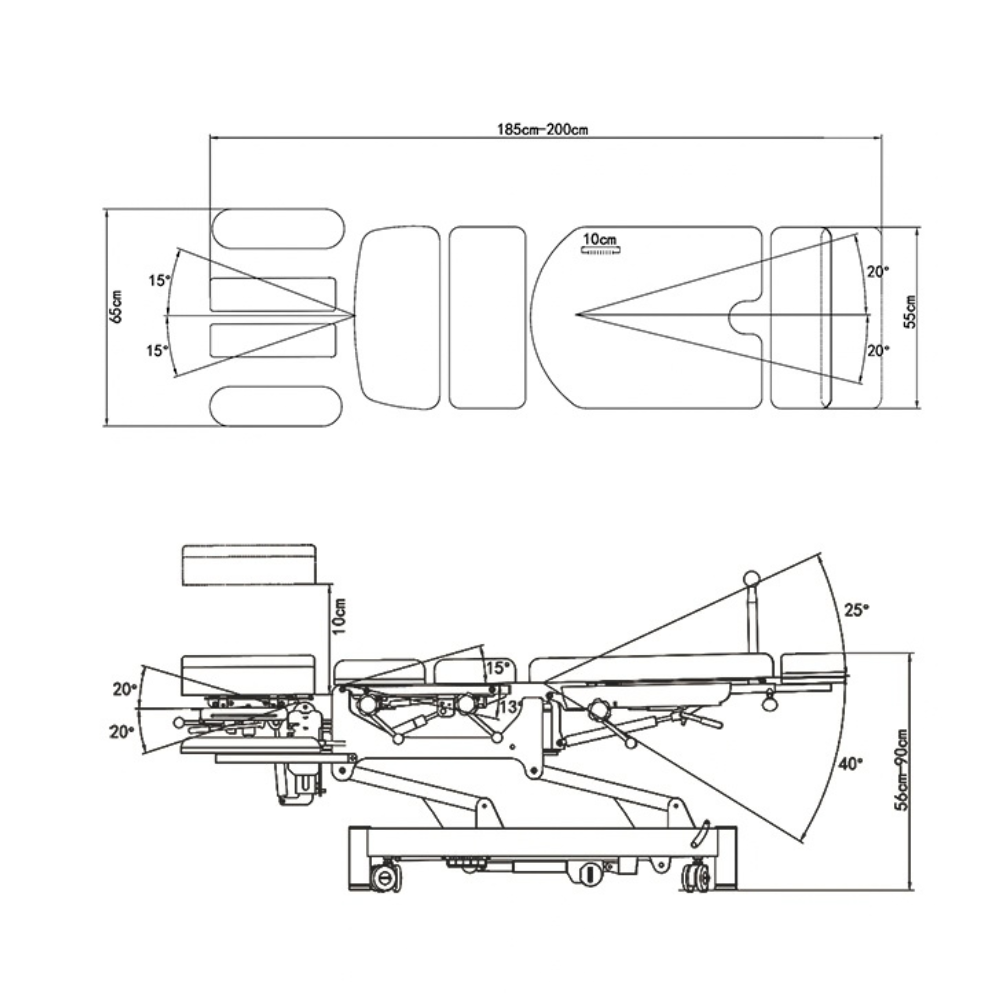

- Dimensions: 185–200cm (L) × 55cm (W); 65cm overall width including armrests
- Weight Capacity: 250kg
- Armrest Safe Working Load: 15kg
- Foam Thickness and Density:5cm; 100kg/m³
- Upholstery Material and Fire Standard: Fire-retardant PVC vinyl; BS 5852
- Base: Closed base frame
- Castor System and Control: Four retractable castors operated by a single lever
- Power Supply: 100–240V AC, 50/60Hz
- Certifications And Regulatory Claims: Manufacturer lists ISO13485, CE, UKCA, TGA and FDA approved
What’s Included:
- Synergy Manipulation Chiropractic Table
- Auxiliary straps
Frequently Asked Questions (FAQs):
- Are The Drop Sections Electrically Activated?
No. The drops use manual pull-rod activation and release under pressure. The powered height and traction adjustments operate separately from the drop mechanism.
- Why Does Adjustable Drop Tension Matter?
It changes the resistance of the drop mechanism, allowing the practitioner to refine its response. It is not a calibrated measurement of the force delivered to the patient.
- Is The Abdominal Breakaway the Same as a Lumbar Drop?
No. The abdominal breakaway adapts support beneath the torso, while the lumbar drop provides a distinct vertical drop function. One help establish patient positioning; the other supports a drop technique.
- What Does The 100,000-Cycle Drop Rating Mean?
It is a durability rating for the vertical drop mechanism. It does not specify treatment frequency, the number of patient appointments or warranty coverage.
