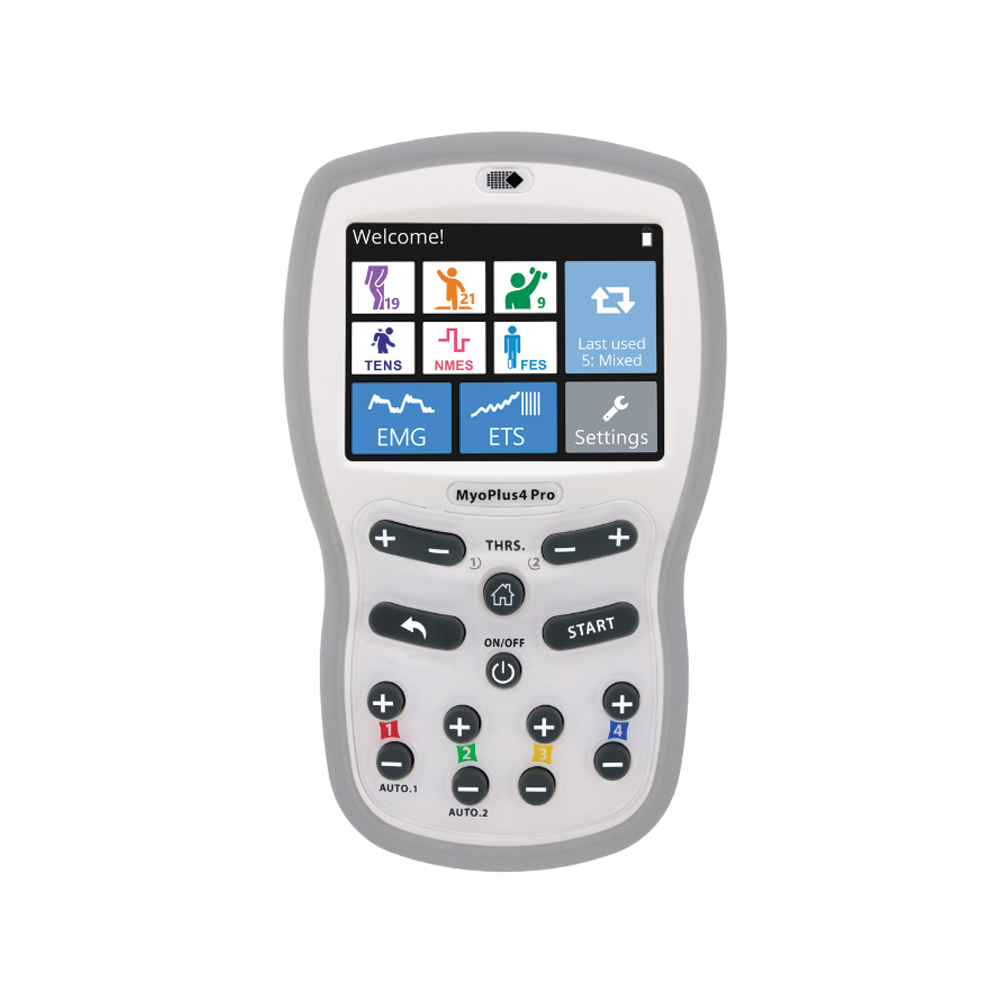

NeuroTrac® MyoPlus4 Pro

This rehabilitation device combines advanced technology with simple usability to give you the best treatment in the comfort of your own home. MyoPlus 4 Pro combines Electronic Muscle Stimulation (EMS) with EMG Biofeedback to exercise and strengthen muscles whilst giving visible indications of your muscle strength. Seeing your progress in this way is incredibly important as it can enable you to gradually increase the intensity of your exercise based on your progress.

MyoPlus 4 Pro has 4 channels, so you can attach 4 sets of electrodes to enable you to use the EMS and EMG separately or at the same time. alternatively, use both sides of the unit to stimulate the muscles and cover a larger surface area than single-channel EMS machines, which is ideal for large muscle mass areas such as the back, thighs or buttocks.

EMS re-educates damaged muscles as a result of injury, stroke or degenerative muscle conditions such as MS. If your muscles are particularly weak or you have experienced nerve damage you may not be able to feel or move them, making it difficult to exercise and strengthen the muscles again. EMS delivers mild electrical currents to the muscles, causing them to automatically contract and relax and gradually build up strength.

This technology is regularly used by physiotherapists whilst rehabilitating their patients. The MyoPlus 4 Pro harnesses this advanced technology but with much simpler functions to make it accessible for people to use at home. By treating muscles frequently at home as well as in the clinic you will dramatically speed up the recovery process and see better results.

The NeuroTrac MyoPlus 4 Pro was designed with physiotherapists in mind to be used as a portable tool, but it is also suitable for personal trainers for in-clinic use or home use (under guidance). The NeuroTrac MyoPlus 4 pro also has a multilingual LCD screen and voice prompts for Biofeedback and now with Bluetooth connectivity!

• Dual channel EMG
• EMG Range: 0.2 to 2000 μV RMS (continuous)
• Sensitivity: 0.l μV RMS
• Accuracy: 4% of μV reading +/-0.3 μV at 200 Hz
• Selectable Bandpass filter - 3db Bandwidth,
  • a. Wide: 18 Hz +/- 4 Hz to 370 Hz +/- 10% - Reading below 235 microvolts 10 Hz +/-3 Hz to 370 Hz +/- 10% - Reading above 235 microvolts
  • b. Narrow: 100 Hz +/- 5% to 370 Hz +/- 10%
• Notch filter: 50 Hz (Canada 60Hz) - 33 dbs (0. 1% accuracy)
• Common Mode Rejection Ratio: 130 dbs Minimum @ 50 Hz
• Batteries: 4 x 1.5V ( AA battery)
• Optional Charger: CE approved.
• Work / Rest periods: 2-99 seconds
• Number of Trials: 2-99

• Four channel Stimulator
• Amplitude: 0-90 mA into 500 Ohm load - actual mA will tend to be less
  than indicated due to electrode impedance: at 1000 Ohms load (Electrodes
  in poor condition) the maximum will be limited to 75 mA, at 1500 Ohms
  load the maximum will be limited to 50 mA.
• Type: Constant current, maximum output
  voltage 70 Volts +5 / -10 Volts
• Waveform: Symmetrical, rectangular,
  bi-phasic with net zero DC current
• Pulse width selection: 50-450 μS (2% accuracy)
• Pulse rate selection: 2-100 Hz (2% accuracy)
• Work / Rest periods: 2-99 seconds
• Time 1 - 99 minutes
• Ramp up time: 0.1 - 9.9 seconds
• Preset and user programmable treatment Programs
• Automatic output shut off with detection of open electrode above 0.5 mA

• Dual lead wire x 2
• EMG reference wire
• Self-adhesive electrodes (50 x 50 mm)
• 1.5V AA batteries x4

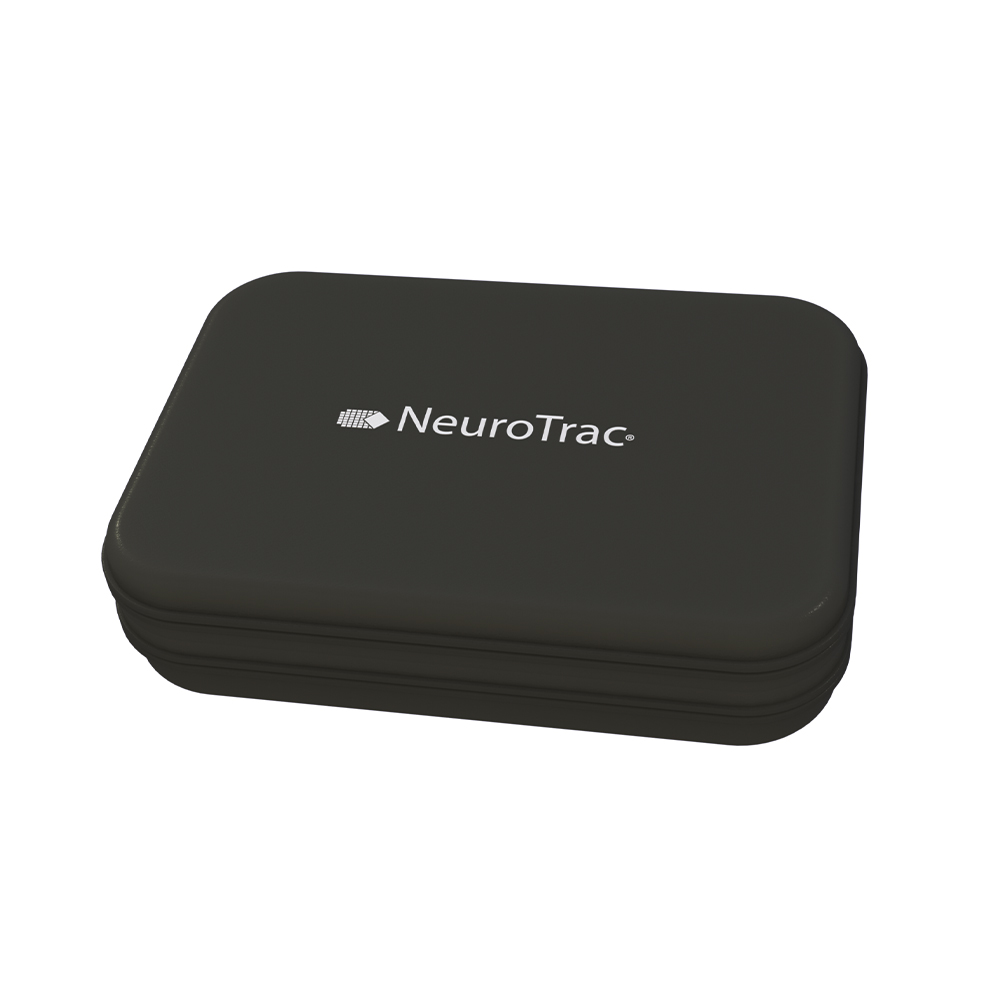

• Carrying Case

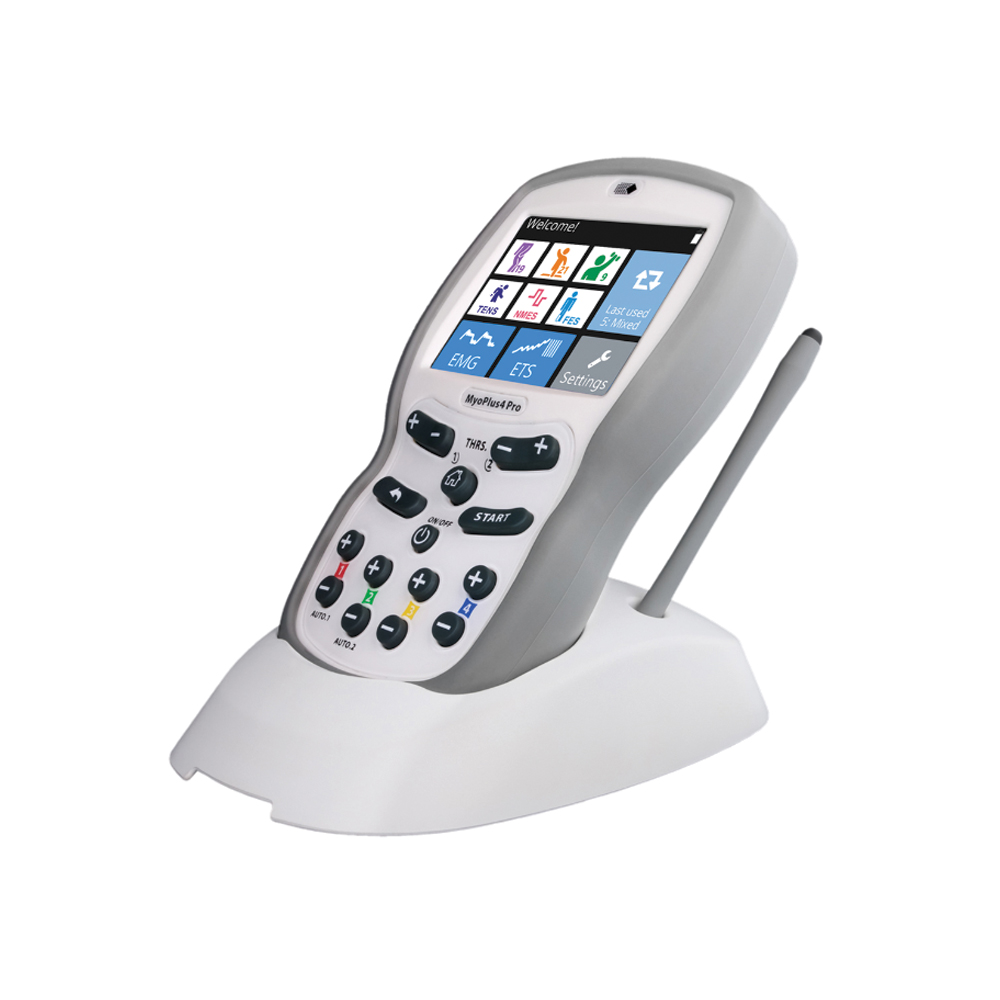

• Stand
• Rubber sleeve with belt clip
• Operating Manual
• Gift Box

Nappi Code: None

Warranty:

All models carry a warranty of 2 Year from the date of purchase. The warranty applies to the simulator only. The warranty does not apply to the leads or electrodes.
