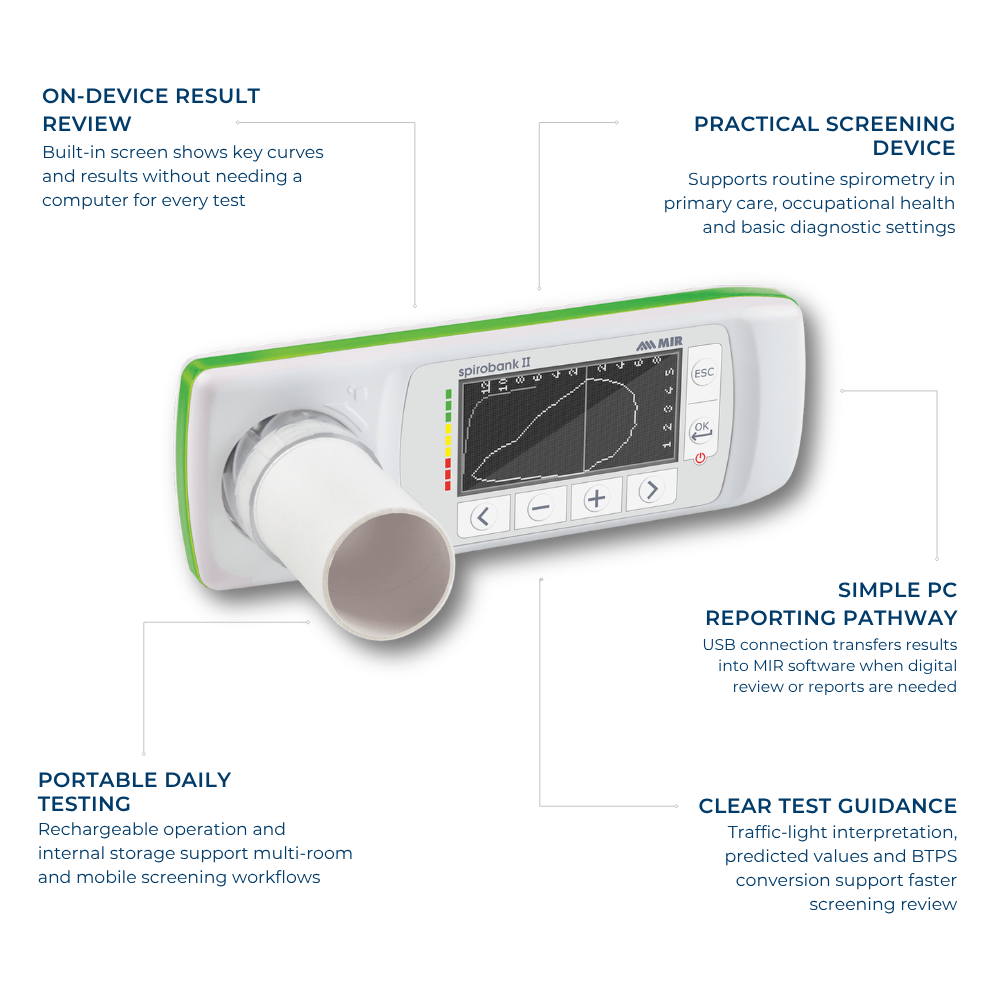

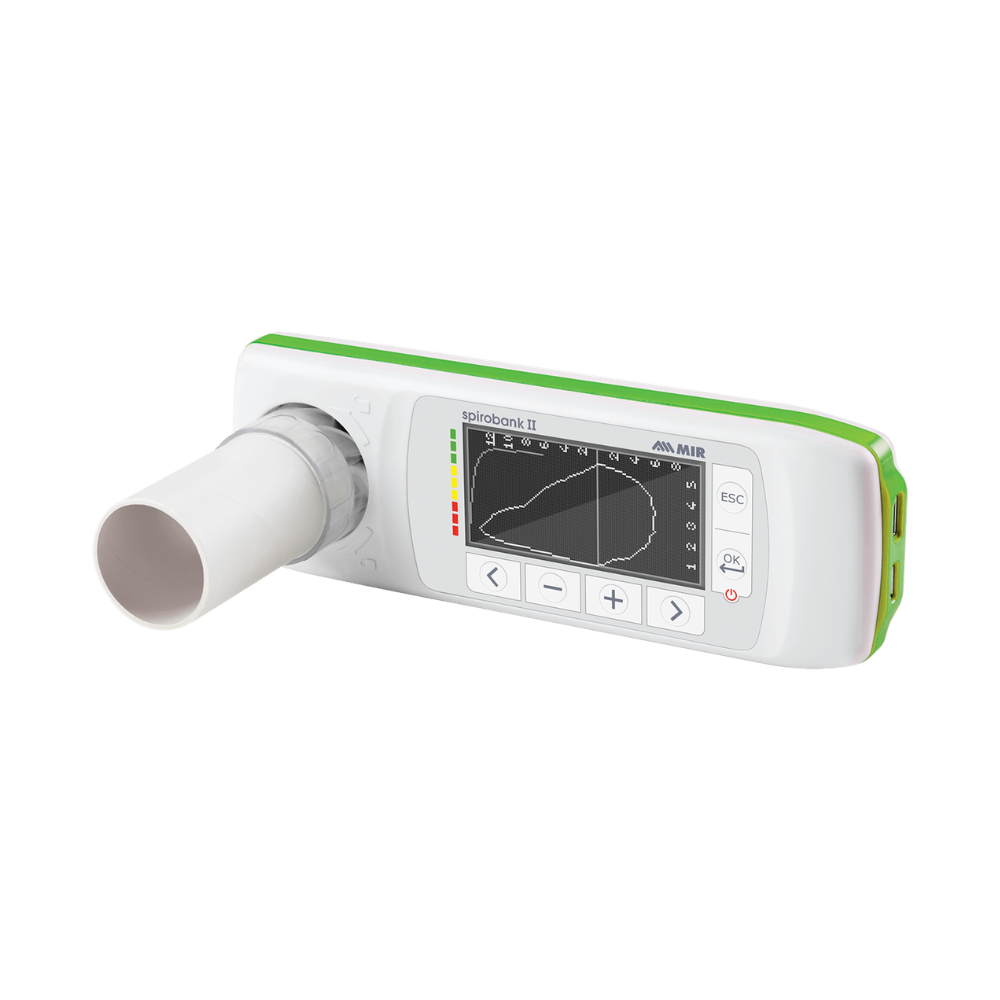

The MIR Spirobank® II Basic is a compact diagnostic spirometer designed for everyday professional spirometry in clinics, hospitals, occupational health settings, medical practices and screening programmes.
It can be used as a stand-alone handheld device or connected to a compatible PC via USB for real-time testing, reporting and patient data management through MIR Spiro Software.
The device supports key spirometry systems, including FVC, VC, IVC and post-bronchodilator screening. This makes it suitable for routine respiratory assessment, screening, clinical follow-up and point-of-care lung function testing.
Its built-in display allows clinicians to view results and curves directly on the device, while internal memory stores up to 10,000 tests for mobile or higher-volume screening systems.
The integrated temperature sensor supports automatic BTPS conversion, and the traffic-light interpretation system provides a simple visual aid for faster result review. In PC mode, MIR Spiro Software can support paediatric incentive animations and digital reporting system.
The Spirobank® II Basic is compatible with reusable MIR turbines and FlowMIR® disposable turbines.
Features:
- Stand-Alone and USB PC Operation: Test directly on the device or connect via USB for MIR software reporting.
- On-Device Result Review: Built-in display shows key results and curves during point-of-care testing.
- Up to 10,000-Test Memory: Supports mobile screening and busy testing clinics.
- Traffic-Light Interpretation: Provides a simple visual aid for faster result review.
- Automatic BTPS Conversion: Integrated temperature sensor supports automatic BTPS conversion.
- PC-Mode Paediatric Incentive: MIR Spiro Software supports incentive animations when connected to a PC.
- Reusable or FlowMIR® Turbine Options: Supports different clinical and screening systems.
Benefits:
- Supports routine screening without a complex setup.
- Allows testing without a smartphone or tablet.
- Gives clinicians immediate on-device result review.
- Supports USB reporting when digital records are needed.
- Stores large numbers of tests for mobile or screening services.
- Supports reusable or disposable turbine systems.
Best Suited For:
- General Practitioners (GPs)
- Pulmonologists
- Respiratory Physicians
- Paediatricians
- Sports Physicians
- Physiotherapists
- Occupational Health Clinics
- Hospitals
- Medical Practices
- Lung Function Screening Programmes
- Sports Medicine Clinics
- Universities and Training Institutions
Specifications:
- Product Name: MIR Spirobank® II Basic
- Brand: MIR Medical International Research
- Product Type: Portable stand-alone and USB PC-based diagnostic spirometer
- Main Workflow: Stand-alone spirometry with USB PC reporting through MIR Spiro Software
- Display: Monochrome LCD, 160 x 80 pixels
- Supported Tests: FVC, VC, IVC and post-bronchodilator screening
- Flow Sensor: Bi-directional digital turbine
- Turbine Options: Reusable MIR turbine or FlowMIR® disposable turbine
- Connectivity: USB 2.0
- Memory Capacity: Up to 10,000 tests
- Power Supply: Rechargeable lithium-ion 3.7V, 1100mAh battery
- Battery Runtime: Up to approximately 50hrs
- Dimensions: 16cm x 5.5cm x 2.5cm
- Weight: 140g including battery
- Volume Accuracy: ±2.5% or 50mL
- Flow Accuracy: ±5% or 200mL/s
- Compliance: ATS/ERS 2005 and 2019 update; ISO 23747:2015; ISO 26782:2009
- Certification: CE marked medical device
What is Included:
- MIR Spirobank® II Basic spirometer
- Rechargeable battery pack
- Micro USB cable
- User documentation
Ordering Notes: Turbines, Mouthpieces and Filters
Select one setup when ordering. These items are sold separately and are not included as standard.
Combination 1: FlowMIR® Disposable Turbine Setup
Combination 2: Reusable Turbine with Adult Disposable Mouthpieces
Combination 3: Reusable Turbine with Paediatric Reusable Mouthpiece
Filter Add-On
Waranty:
The manufacturer provides a 12-month warranty for professional healthcare use. Warranty covers manufacturing defects, with repair or replacement at the manufacturer’s discretion. Consumables, batteries, turbines, misuse, accidental damage, unauthorised repairs and improper maintenance are excluded.
FAQs:
1. What tests can Spirobank® II Basic perform?
The Spirobank® II Basic supports FVC, VC, IVC and post-bronchodilator screening.
2. Can the spirometer be used without a computer?
Yes. It can be used as a stand-alone spirometer and can also connect to a PC via USB.
3. Is it suitable for routine screening?
Yes. It is well-suited to primary care, occupational health, sports medicine and basic diagnostic screening.
4. What is the benefit of automatic BTPS conversion?
It adjusts measured values to body-temperature and saturated-pressure conditions, supporting more consistent spirometry testing.
5. Can I choose reusable or disposable turbines?
Yes. The device is compatible with reusable MIR turbines and FlowMIR® disposable turbines.
