The HeartSave myPAD Semi-Automated External Defibrillator (AED) with Graphic LED combines automatic ECG analysis with a clear, straightforward interface designed to make operation easy to follow. Voice prompts, Graphic LED indicators and electrode-placement graphics guide the rescue sequence, while Semi-Automated shock delivery provides a dedicated button for final shock activation when defibrillation is advised.
Adult and child modes allow the same compact device to support different patient groups, with defibrillation adapted accordingly. Biphasic technology automatically compensates for patient impedance, while the simple control layout, spoken guidance and clear visual indicators help reduce unnecessary complexity during use.
Compact, lightweight construction supports convenient placement and transport. Automatic self-tests and the visible status display make routine readiness checks straightforward, while waterproof and dustproof protection supports long-term placement across professional and public-access environments. Bluetooth supports local device configuration, with optional Wi-Fi + LTE available for remote management and monitoring.
Control When It Matters: Automatic rhythm analysis with rescuer-controlled shock activation.
The device determines whether defibrillation is required before enabling the dedicated shock button, combining automatic analysis with a clear final activation step.
Easy To Follow in an Emergency: Clear voice prompts and visual guidance keep the operating sequence straightforward.
Graphic LED indicators, spoken instructions and electrode-placement graphics work together to guide the user through the important stages of AED operation.
Built For Long-Term Readiness: Automatic checks and durable construction support dependable day-to-day availability.
Scheduled self-tests, a visible readiness indicator and waterproof and dustproof protection help keep the device prepared and accessible between uses.
Best Suited For:
- Workplaces, offices and corporate facilities
- Schools and educational facilities
- Retail, hospitality and commercial environments
- Healthcare and care facilities
- Community centres, sports facilities and public spaces
- Transport hubs and other public-access locations
All Features:
- Semi-Automated Shock Delivery: Uses a dedicated shock button for rescuer-controlled shock activation.
- Automatic ECG Analysis: Evaluates the heart rhythm and determines whether defibrillation is advised.
- Voice Guidance: Spoken prompts support the rescue workflow.
- Graphic LED Guidance: Provides clear visual prompts and operating indicators.
- Electrode Placement Guidance: Visual graphics assist with electrode positioning.
- Adult & Child Modes: Supports both adult and paediatric defibrillation.
- Biphasic Defibrillation: Automatically compensates according to patient impedance.
- Automatic Self-Tests: Periodically checks key device functions and readiness.
- Local Status Display: Provides a visible indication of normal readiness or a condition requiring attention.
- Multiple Language Support: Supports up to 6 configured languages.
- Bluetooth Configuration: Supports local connection to the compatible PRIMEDIC configuration app.
- Internal Data Recording: Stores ECG, therapy, event, system and audio information.
- USB Data Export: Supports authorised retrieval of recorded event data.
- Compact & Lightweight Design: Supports convenient placement, storage and transport.
- Waterproof Protection: Provides environmental protection against water exposure.
- Dustproof Protection: Protects the enclosure against dust ingress.
- Durable Construction: Designed for the handling requirements of a transportable emergency device.
Technical Specifications:
- Product Name: HeartSave myPAD Semi-Automated External Defibrillator (AED) with Graphic LED
- Brand: PRIMEDIC
- Device Type: Semi-Automated External Defibrillator
- Shock Delivery: Semi-Automated with dedicated shock button
- Interface: Graphic LED
- Voice Guidance: Yes
- Adult / Child Modes: Yes
- ECG: Integrated single-channel ECG
- Waveform: Biphasic truncated exponential
- Patient Impedance: Automatic compensation
- Adult Energy Sequence: 150J / 170J / 200J
- Child Energy Sequence: 50J / 50J / 50J
- Applicable Impedance Range: 25–200Ω
- Electrode Type: SavePads PLUS C
- Patient Use: Adult and child
- Battery: BATTERY 3C / NRL03C
- Operating Time: Up to 9 hours under specified test conditions
- Automatic Self-Tests: Yes
- Bluetooth: Yes
- Data Export: USB
- Languages: Up to 6 languages can be configured
- Dimensions:1 × 15.1 × 7.3cm (±0.2cm)
- Weight: 1.0kg (±0.2kg)
- Protection Rating: IP66 waterproof and dustproof
- Drop Test:6m
- *Optional Remote Connectivity: Wi-Fi + LTE

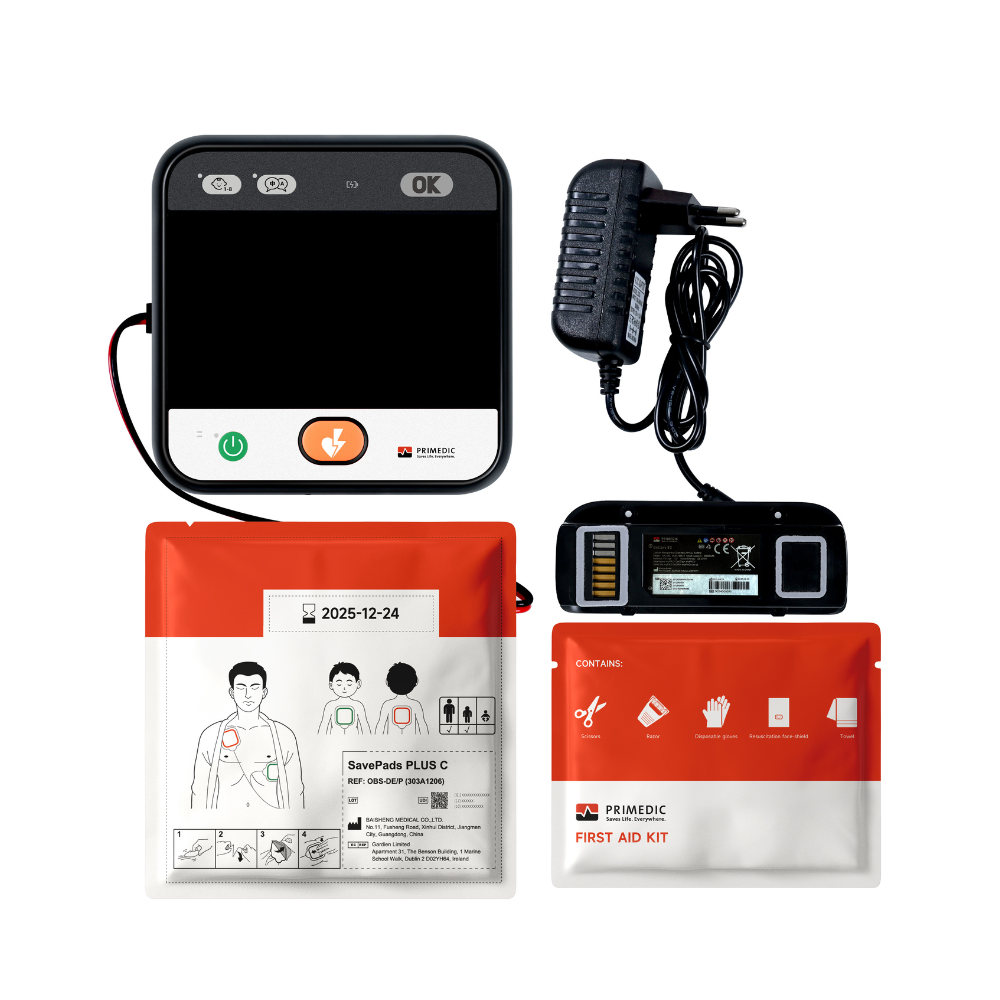

What's Included:
- HeartSave myPAD Semi-Automated AED with Graphic LED
- BATTERY 3C non-rechargeable battery
- SavePads PLUS C electrode set
Warranty:
8-year warranty against material and manufacturing defects, subject to manufacturer conditions.
*For suspected sudden cardiac arrest in a person 1 year and older who is unconscious and not breathing normally. Follow the device prompts and read the user manual before use for operating instructions, precautions and safety information.
Need A Different HeartSave myPAD Configuration?
Different configurations can be ordered to suit your specific requirements.
- Choose Your Shock Delivery
- Semi-Automated: AED advises the shock; the rescuer presses the shock button.
- Fully Automated: AED advises and delivers the shock automatically after warning and countdown.
- Choose Your Display
- Graphic LED: Voice prompts with illuminated indicators and graphic guidance.
- 3" Colour LCD: Adds animated visual guidance, ECG waveform and on-screen information.
- 3" Touch LCD: Adds touchscreen control to the colour LCD interface.
- Choose Your Electrodes
- SavePads PLUS C: Adult and child electrodes without CPR feedback.
- SavePads PLUS CS: Adult and child electrodes with CPR compression-rate and depth feedback.
- Choose Your Battery
- BATTERY 3C – Non-Rechargeable: Long-standby battery with no routine charging.
- BATTERY 3G – Rechargeable: Rechargeable battery used with the PRIMEDIC charging adapter.
- Choose Your Connectivity
- Bluetooth + Wi-Fi: Adds Wi-Fi remote device management and monitoring.
- Bluetooth + LTE: Adds mobile-network remote device management and monitoring.
- Bluetooth + Wi-Fi + LTE: Adds both Wi-Fi and LTE remote connectivity.
Frequently Asked Questions (FAQs):
- Does someone need medical qualifications to use the HeartSave myPAD?
No medical qualification is specified as a requirement for emergency operation. Intended users include trained first-aiders, people trained in basic or advanced life support and qualified medical personnel, while emergency use by an untrained person may also be necessary.
- What happens if the heart rhythm does not require a shock?
The AED identifies shockable and non-shockable rhythms. If defibrillation is not required, the shock sequence is not enabled and the device continues with the appropriate resuscitation guidance.
- How does child mode work?
Child mode reduces the defibrillation energy for younger patients. The same electrode type is used, with placement adjusted according to the paediatric instructions.
- Can the language be changed during operation?
Yes. The language button allows the selected voice-prompt language to be changed during operation, with up to 6 languages supported according to the device configuration.
- How does the AED check that it is ready for use?
Self-tests are performed when the device is switched on, after battery insertion and automatically at scheduled intervals. The local status display provides the visible readiness indication.
- What does the status display tell me?
A normal status indicates that the AED is ready for use. A warning status can indicate conditions involving the battery, electrodes or an internal device fault.
- Does the AED need internet access to work?
No. ECG analysis, guidance and defibrillation operate independently of Wi-Fi or LTE. Network connectivity is used for remote device management and monitoring.
- What information is available after an emergency?
The AED records ECG, impedance, shock, timing, event and audio information. Authorised information can be exported through USB for post-event review.
