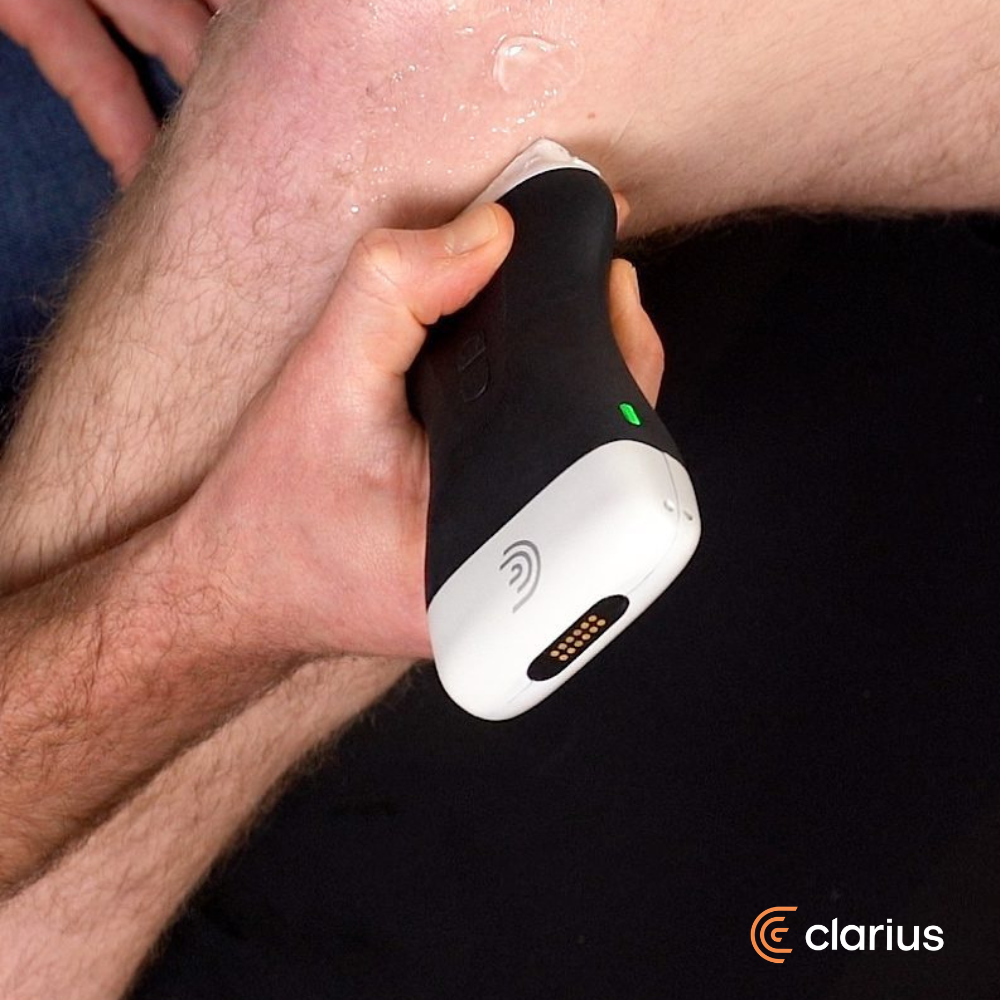

The Clarius L7 HD3 is a lightweight, handheld wireless ultrasound scanner that brings high-definition imaging directly to the patient. It connects to a compatible smartphone or tablet, removing the need for a scanner cable or conventional console. Its rechargeable battery provides approximately 60 minutes of typical scanning for convenient use across consulting rooms, treatment areas and procedure spaces.
Its 4–13MHz range provides the penetration needed to examine anatomy to 15cm while retaining a linear view for shallower structures. This broad depth range supports varied patient sizes and helps practitioners visualise hips, deeper muscles, joints, nerves, vessels and surrounding soft tissue.
B-Mode provides real-time anatomical imaging, while M-Mode supports movement assessment over time. Colour and Power Doppler add blood-flow information for vascular assessment and procedure planning. These standard capabilities support musculoskeletal and orthopaedic assessment, pain management, regional anaesthesia, vascular access, guided procedures and appropriate pre-, intra- and postoperative imaging.
*Optional software packages add advanced imaging modes, speciality presets, AI-assisted tools, procedure recording, Clarius Cloud and DICOM connectivity.
Best Suited For:
- Orthopaedics and Sports Medicine
- Physiotherapy and Physical Medicine and Rehabilitation
- Pain Management, Regional Anaesthesia and Regenerative Medicine
- General, Plastic and Reconstructive Surgery
- Vascular and Procedural Practice
MSK Assessment and Guidance:
- Deep-Joint Assessment: Examine hips and other joints requiring greater linear-array penetration.
- Muscle and Tendon Imaging: Assess deep gluteal structures, hamstring origins, quadriceps and other deeper muscular targets.
- Broader Patient Coverage: Reach relevant anatomy across varied patient sizes and beneath thicker tissue layers.
- Dynamic Rehabilitation Monitoring: Observe muscles, tendons and joints during movement to assess injuries and monitor recovery.
- Pain and Nerve Procedures: Visualise deeper nerves, blocks, injection targets and needle paths during appropriate procedures.
- Vascular and Procedural Guidance: Assess deeper vessels and guide suitable vascular-access and interventional procedures.
Plastic Surgery Applications:
- Deeper Body-Tissue Assessment: Visualise fat layers, muscles, fascia, vessels and surrounding soft tissue to 15cm.
- Abdominal and Gluteal Imaging: Assess abdominal-wall, fat-layer and gluteal anatomy during appropriate surgical workflows.
- Vascular Mapping: Use Colour and Power Doppler to locate vessels and assess blood flow around the surgical area.
- Surgical-Plane Assessment: Examine relevant tissue layers, vessels and deeper anatomy during procedure planning.
- Procedure Guidance: Visualise suitable deeper targets and needle paths during appropriate guided procedures.
- Perioperative Assessment: Support appropriate pre-, intra- and postoperative assessment of soft tissue and surgical anatomy.
Why Choose This Scanner?
- Greater Imaging Depth: Examine anatomy to 15cm.
- Broader Patient Coverage: Accommodate varied body types and target depths.
- Versatile Linear Imaging: Assess shallow and deeper structures with one scanner.
- Standard Doppler Imaging: Add blood-flow information with Colour and Power Doppler.
- Deeper Procedure Guidance: Visualise appropriate deeper targets and needle paths.
- Portable Wireless Use: Bring ultrasound directly to the patient.
All Standard Features:

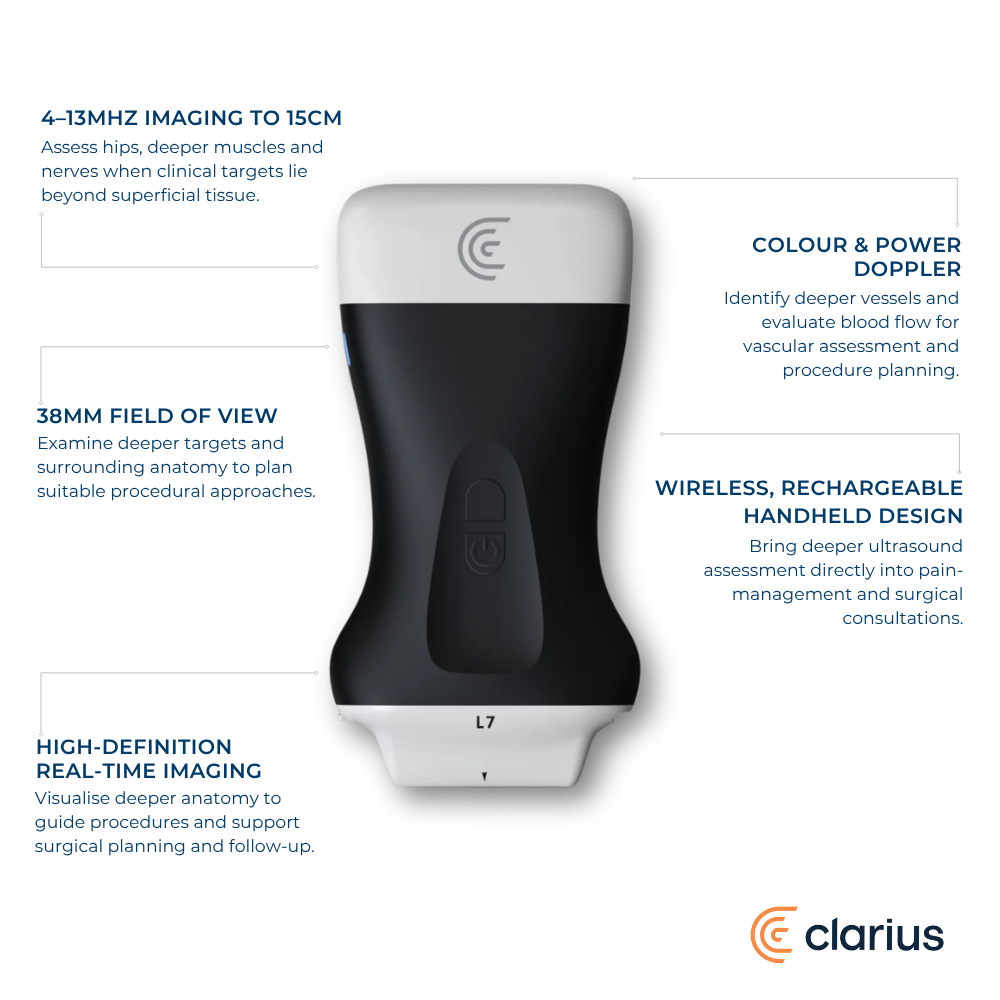

- Versatile Linear Imaging: Combines a 4–13MHz range, 15cm imaging depth and 38mm field of view.
- Detailed Real-Time Imaging: Uses 192 piezoelectric elements and eight beamformers.
- Structural and Dynamic Imaging: B-Mode displays anatomy, while M-Mode tracks movement over time.
- Colour and Power Doppler: Add directional and sensitive blood-flow information.
- Wireless App Connection: Sends live images directly to a compatible smartphone or tablet.
- Programmable Controls: Two scanner buttons provide quick access to selected functions.
- Rechargeable Operation: Provides approximately 60 minutes of typical scanning and charges in approximately 90 minutes.
- Compact Clinical Design: Moves easily between consulting, treatment and procedure areas.
- Durable Construction: Combines a magnesium shell, rubber grip, IP67 protection and 1m drop testing.
Technical Specifications:

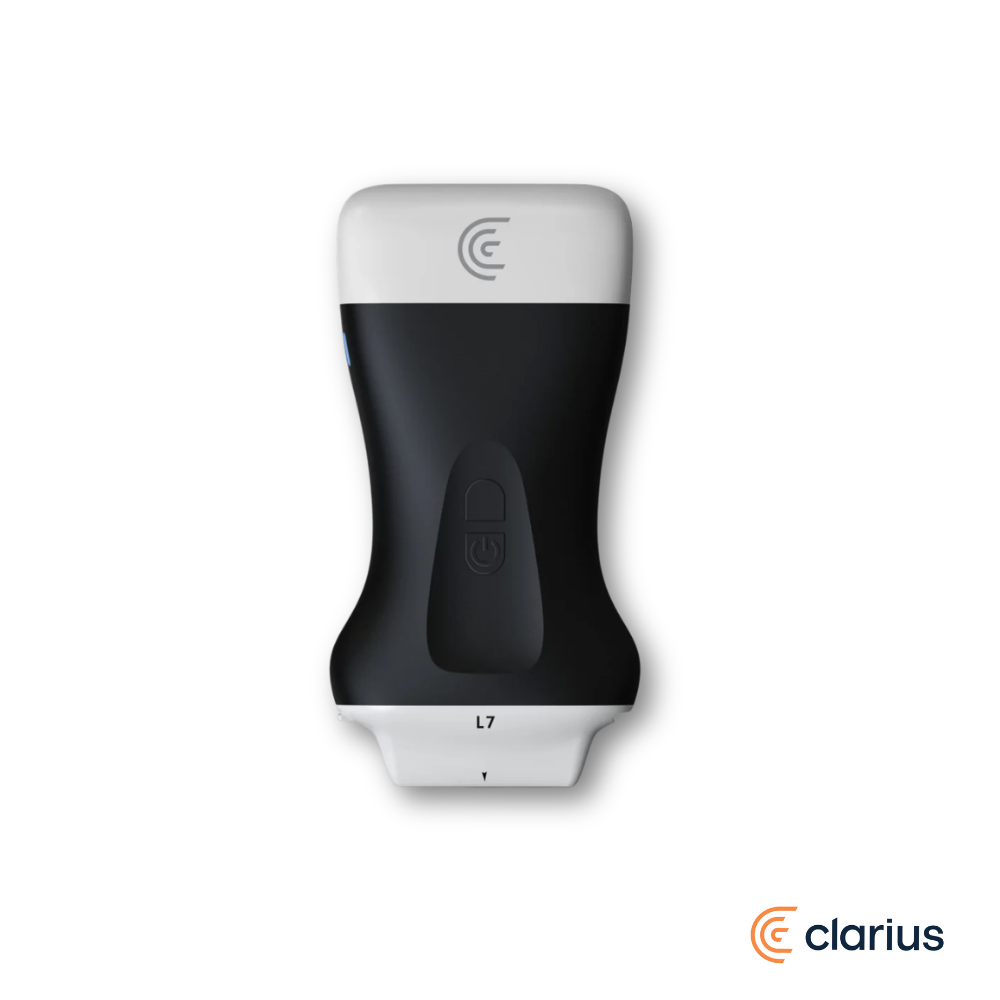

- Device Name: Clarius Scanner L7 HD3
- Manufacturer: Clarius Mobile Health Corp.
- Device Description: Portable, general-purpose, software-controlled linear diagnostic ultrasound system.
- Frequency: 4–13MHz
- Maximum Imaging Depth: 15cm
- Field of View: 38mm
- Imaging System: 192 piezoelectric elements and eight beamformers
- Standard Imaging Modes: B-Mode, M-Mode, Colour Doppler and Power Doppler
- Indicated Clinical Applications: Ophthalmic, abdominal, intra-operative, paediatric, small organ, musculoskeletal, peripheral vessel, carotid and appropriate procedural guidance
- Ophthalmic Operation: B-Mode only
- Display Platform: Compatible smartphone or tablet
- Wireless Connection: Direct Wi-Fi 802.11n at 5GHz and Bluetooth Low Energy 4.0+
- Controls: Two programmable scanner buttons and app-based controls
- Typical Scan Time: Approximately 60 minutes
- Charge Time: Approximately 90 minutes
- Dimensions: 147 × 76 × 32mm
- Weight: 288g
- Housing: Magnesium shell with rubber grip
- Ingress Protection: IP67
- Drop Testing: 1m
What’s Included:
- Clarius L7 HD3 scanner
- Clarius Charger HD3
*Optional Accessory: Clarius Power Fan HD3: Required for scanning beyond 15 consecutive minutes. Support longer examinations, guided procedures and training sessions with additional scanner cooling. The Power Fan clips onto the scanner and allows scanning to continue while charging through a connected external power supply (sold separately).
*Optional Software Capabilities: These capabilities are not included as standard. Availability depends on the selected software package, scanner compatibility, region and regulatory approval.
- Pulsed-Wave Doppler, Needle Enhance and Strain Elastography
- Voice Controls, Split Screen and Procedure Recording
- T-Mode, MSK AI and Median Nerve AI
- Additional speciality presets, measurements and automated workflows
- Exam Sharing and Clarius Live
- Clarius Cloud and DICOM
- Clarius Classroom and selected training resources
Warranty:
The Clarius L7 HD3 includes a three-year warranty, subject to the manufacturer’s warranty terms and conditions.
*For use by trained medical professionals within the scanner’s indicated applications. Read the User Manual before use for precautions and safety information.
Frequently Asked Questions (FAQs):
- When Should a Practice Choose the L7 HD3?
Choose it when examinations involve deeper joints, muscles, nerves, vessels, varied patient depths or procedural targets located as deep as 15cm.
- How Does Frequency Affect L7 HD3 Imaging?
Lower frequencies provide greater penetration. The 4–13MHz range balances image detail with access to superficial and deeper anatomy.
- What Do B-Mode and M-Mode Show?
B-Mode displays real-time two-dimensional anatomy. M-Mode tracks movement along a selected ultrasound line over time.
- Why Are 192 Piezoelectric Elements and Eight Beamformers Significant?
The elements capture detailed ultrasound data, while the beamformers process it rapidly to support clear, smooth real-time imaging.
- Does Scanning Require an Internet Connection?
No. The scanner connects directly to the compatible smartphone or tablet through Wi-Fi. Internet access is needed for connected services such as Clarius Cloud, DICOM and remote sharing.
- Can the Scanner Be Used During Sterile Procedures?
Yes, when used with a compatible approved sterile sheath and the cleaning and disinfection procedures specified in the User Manual.
- What Does an Advanced Software Package Add, and Can It Be Added Later?
Depending on the package and region, it adds advanced Doppler, Needle Enhance, elastography, AI-assisted tools, Voice Controls, recording, sharing and connected workflows. Eligible packages can be added later.
