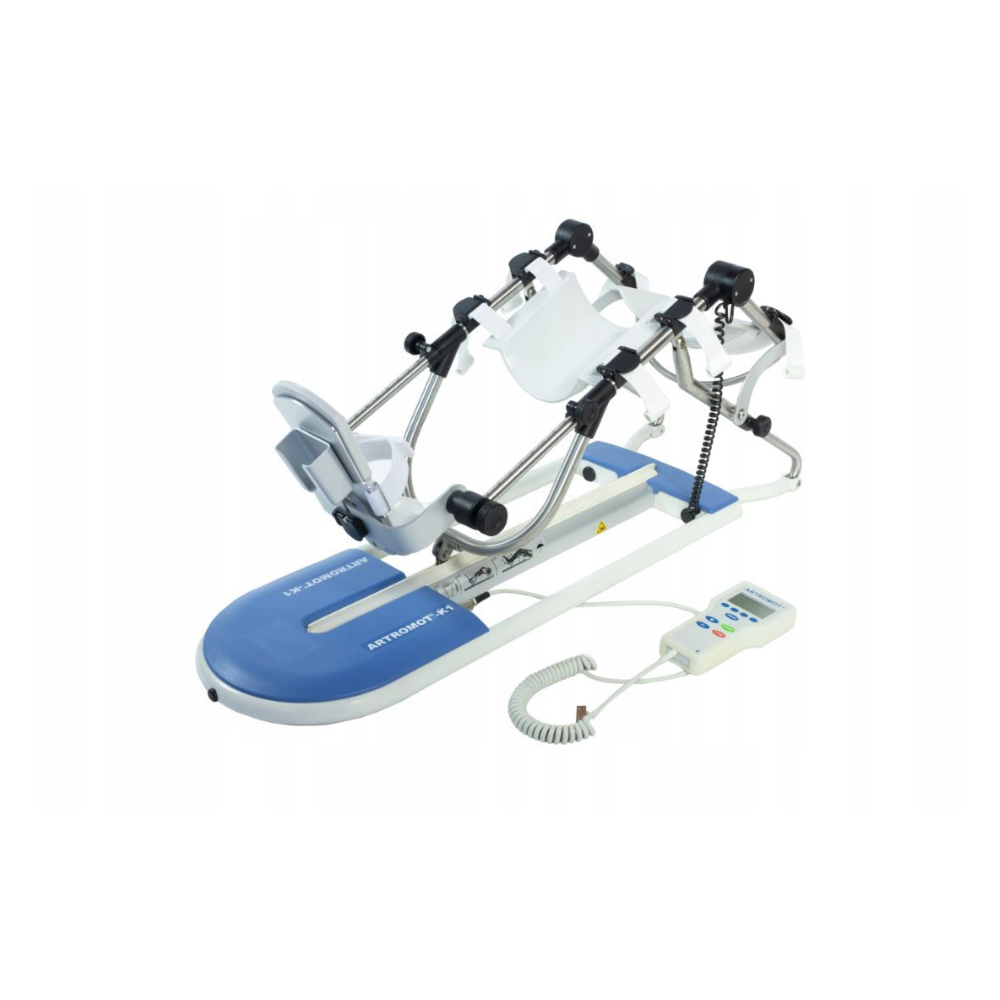

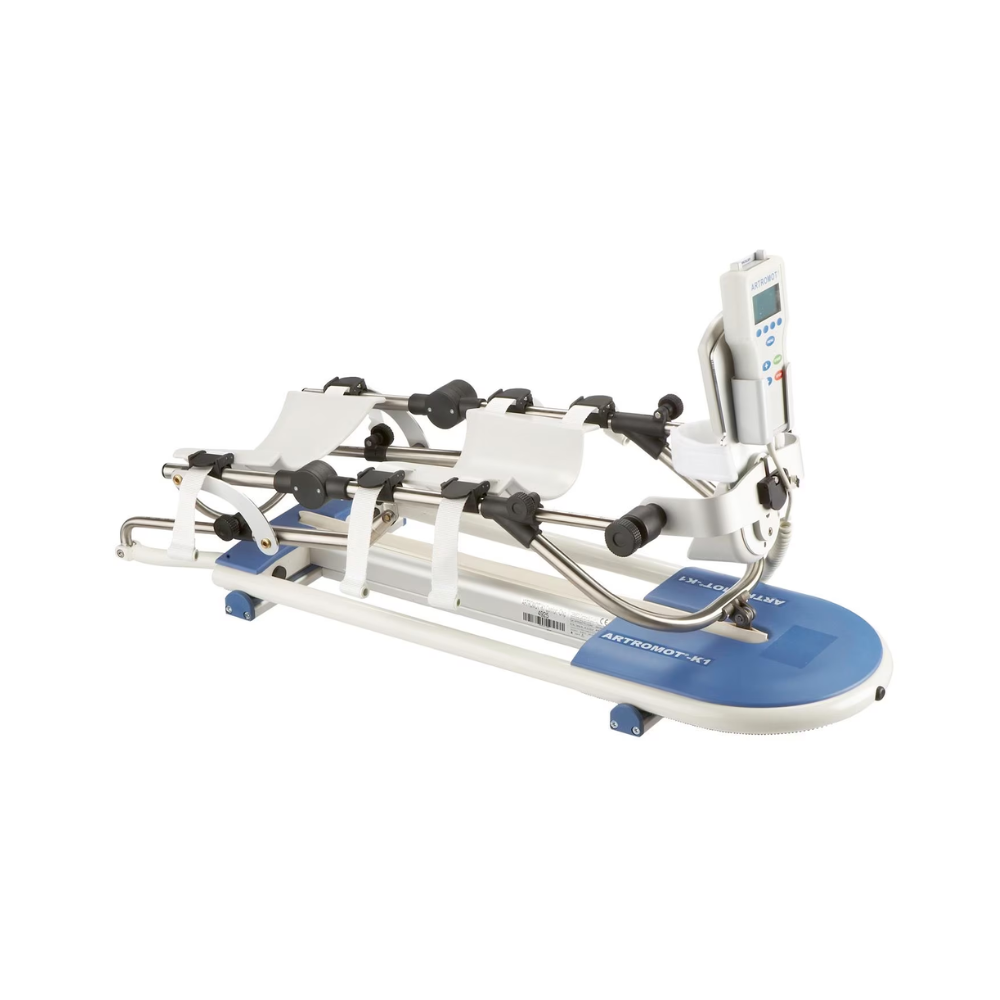

The Chattanooga ARTROMOT-K1 combines the best features of the time-tested ARTROMOT knee machine with state-of-the-art, trend-setting technology.
ARTROMOT-K1 was developed for the demanding use in clinics and home care/rental programs. Using the ARTROMOT-K1 is made easy by the intuitive operation of the handheld programming unit with self-explanatory symbols. The ARTROMOT-K1 combines the best features of the time-tested ARTROMOT knee machine with state-of-the-art, trend-setting technology.
Indications:
- Arthrotomy and arthroscopy procedures in combination with synovectomy, arthrosis
- Treatment following mobilization of joints in anaesthetized patients
- Surgical treatment of fractures and pseudoarthrosis
- Exercise-stable osteosynthesis
- Operations on soft tissue in the joint area
- Patellectomy
- Corrective osteotomy
- Meniscectomy
- Total knee/hip replacement
- ACL/PCL reconstruction
- Complex knee surgery
- Articular cartilage surgery, e.g. autologous chondrocyte transplantation (ACT)
Features & Benefits:
Range of Motion Extension/Flexion
- Knee -10° / 0° / 120°
- Hip 0° / 7° / 115
ARTROMOT-K1 Standard - Additional features
- Timer 1 - 59 minutes / 1 - 24 hours / continuous operation
- Pauses (extension and/or flexion) 0 - 59 seconds / 1 - 59 minutes
- Reverse on load in steps 1 - 25 / patient safety feature
- Warm-up protocol: Gradual progression to the maximum range of motion
- Total therapy time: Added sum of the therapy sessions
- New patient: Activates the default settings for new patients
- Transport setting: Moves the carriage to the transport position
- Service menu
Specifications:
| Weight | 11 kg (24.4 lb) |
| Dimensions | 97 x 36 x 23 cm (38.1 x 14.1 x 9.0 in) |
| Suitable for patient height | Approx. 120 – 205 cm |
| max. permanent load on the carriage | 25 kg |
| max. patient weight | Approx. 230 kg |
* Dimensions are listed as L x W x H
Nappi Code: None
Warranty:
This product comes with a 2-year warranty from the date of purchase, this warranty does not include any of the accessories.
