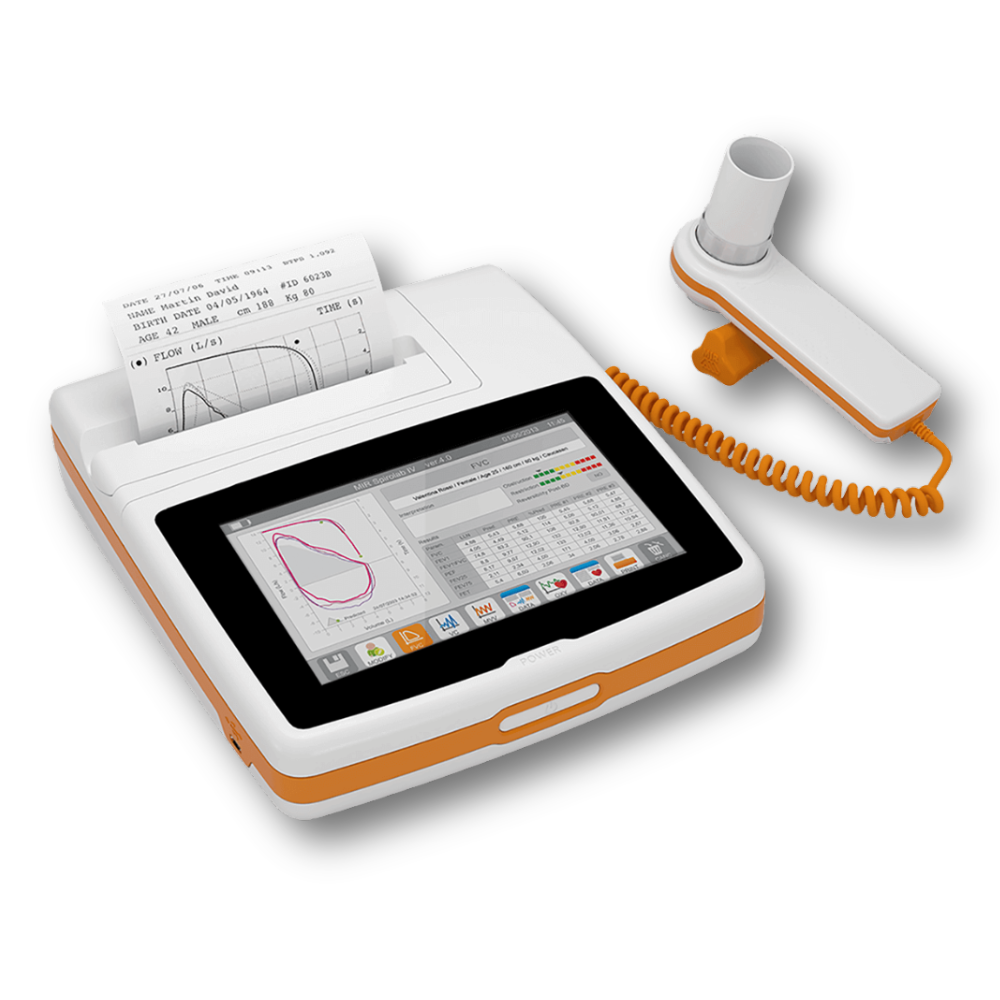

The MIR Spirolab® is a professional all-in-one desktop spirometer designed for advanced respiratory assessment in hospitals, respiratory clinics, occupational health environments, specialist practices and primary healthcare facilities.

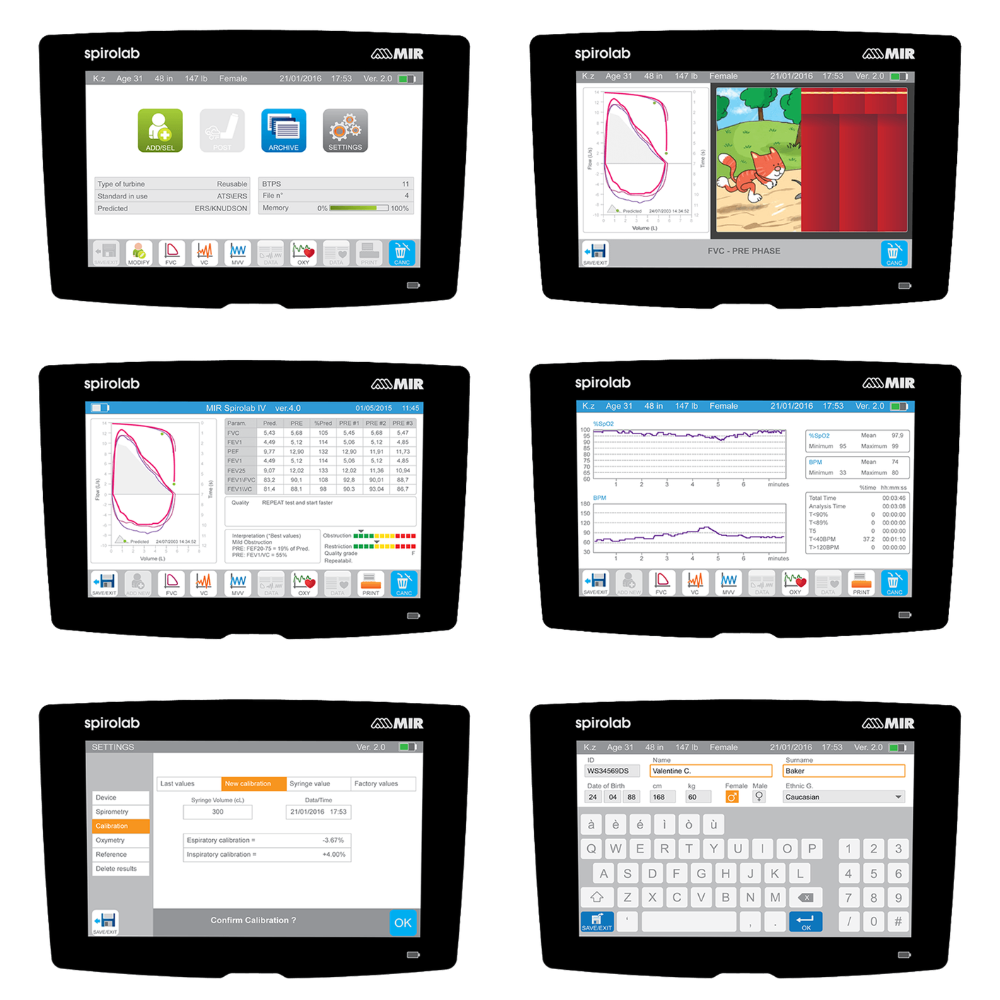

It's 17.8cm colour touchscreen supports on-device navigation, patient management, test execution and result review. The built-in thermal printer allows immediate report printing without needing a computer for every session.
Spirolab® can operate as a stand-alone desktop spirometer or connect to a compatible PC via USB for expanded reporting and patient record management through MIR Spiro Software.
The device supports FVC, VC, IVC, MVV and PRE/POST bronchodilator comparison. Real-time curves, paediatric incentive animations, on-device calibration checks and large internal memory support efficient daily testing.
This model includes 1 reusable turbine flowmeter, making it suitable for practices that prefer a reusable turbine operation. The reusable turbine must be cleaned and disinfected between patients according to the manufacturer’s instructions and local clinical protocols.
For practices that require oxygen saturation checks alongside spirometry, an oximetry add-on is available as an additional configuration.

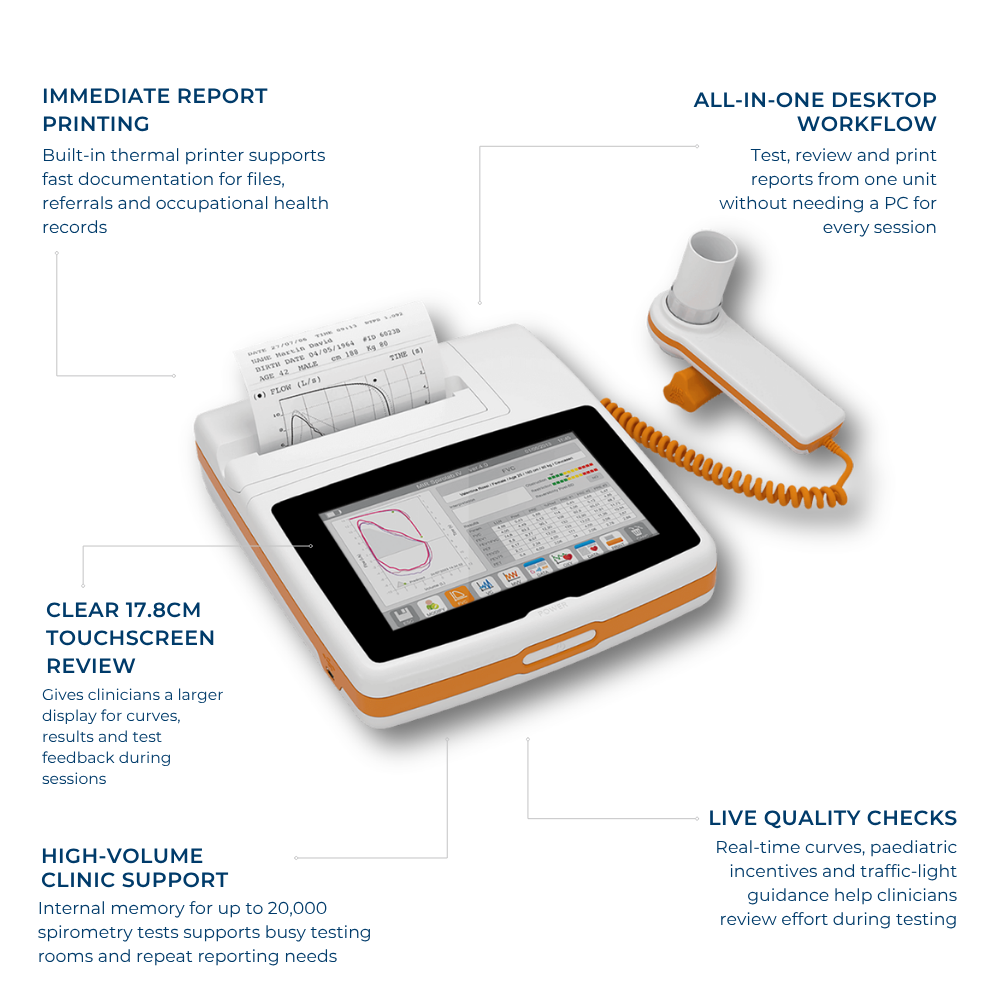

Features:
- All-in-One Desktop Spirometry: Test, review and print directly from one desktop unit.
- 17.8cm Colour Touchscreen: Provides clear on-device navigation, curves and result review.
- Built-In Thermal Printer: Prints detailed reports directly from the device.
- Included Reusable Turbine Flowmeter: Supports a reusable turbine for routine professional use.
- Stand-Alone and PC Operation: Use directly from the device or connect to PC reporting through MIR Spiro Software.
- Automatic BTPS Conversion: Integrated temperature sensor supports automatic BTPS conversion.
- Large Internal Memory: Stores up to 10,000 spirometry tests for busy clinics.
- On-Device Calibration Check: Supports routine quality assurance procedures.
Benefits:
- Reduces reliance on a computer during routine testing.
- Supports faster documentation with immediate printed reports.
- Keeps testing, review and report output in one desktop.
- Supports high-volume clinical and occupational health testing.
- Supports reusable turbines for routine professional use.
- Adds optional spot SpO₂ and pulse-rate checks when configured.
Best Suited For:
- Pulmonologists
- Respiratory Physicians
- General Practitioners
- Physiotherapists
- Hospitals
- Respiratory Clinics
- Occupational Health Clinics
- Primary Healthcare Facilities
- Pulmonary Function Laboratories
- Medical Specialists performing respiratory assessments
Additional Oximetry Option:
The optional oximetry configuration adds spot SpO₂ and pulse-rate measurement to the assessment.
- Adds oxygen saturation and pulse-rate measurement
- Supports quick SpO₂ checks during respiratory assessment
- Useful for clinics wanting spirometry and spot oximetry in one MIR
Specifications:
- Product Name: MIR Spirolab® with 1 Reusable Turbine Flowmeter
- Brand: MIR Medical International Research
- Product Type: Professional desktop spirometer
- Main Workflow: Stand-alone desktop spirometry with USB PC reporting
- Display: 17.8cm colour touchscreen, 800 x 480 pixels
- Printer: Built-in thermal printer
- Included Flowmeter: 1 reusable turbine flowmeter
- Flow Sensor: Bi-directional digital turbine
- Supported Tests: FVC, VC, IVC, MVV and PRE/POST bronchodilator comparison
- Connectivity: USB 2.0 and Bluetooth® 5
- Memory Capacity: Up to 10,000 spirometry tests
- Power Supply: Rechargeable battery and mains power
- Battery Runtime: Up to approximately 10 hours
- Dimensions: 22cm x 21cm x 5.1cm
- Weight: 1.45kg including battery pack
- Volume Accuracy: ±2.5% or 50mL
- Flow Accuracy: ±5% or 200mL/s
- Mouthpiece Diameter: Ø3cm
- Compliance: ATS/ERS 2005 and 2019 update; ISO 23747:2015; ISO 26782:2009
- Certification: CE marked medical device
- Oximetry*: Optional spot SpO₂ and pulse-rate measurement when configured
- Oximetry Memory*: About 500hrs oximetry when configured
What's Included:
- MIR Spirolab® spirometer
- 1 Reusable turbine flowmeter
- Rechargeable battery pack
- Battery charger/power supply
- User documentation
Ordering Notes: Turbines, Mouthpieces and Filters
Select one setup when ordering. These items are sold separately and are not included as standard.
Combination 1: FlowMIR® Disposable Turbine Setup
Combination 2: Reusable Turbine with Adult Disposable Mouthpieces
Combination 3: Reusable Turbine with Paediatric Reusable Mouthpiece
Filter Add-On
Optional Add-On: Oximetry
Warranty:
The manufacturer provides a 12-month warranty for professional healthcare use. Warranty covers manufacturing defects, with repair or replacement at the manufacturer’s discretion. Consumables, batteries, turbines, misuse, accidental damage, unauthorised repairs and improper maintenance are excluded.
FAQs:
1. Can Spirolab® operate without a computer?
Yes. Testing, review and report printing can be completed directly from the device.
2. Does this model include a reusable turbine flowmeter?
Yes. This product page is for the Spirolab® package with 1 reusable turbine flowmeter.
3. Does Spirolab® support bronchodilator comparison?
Yes. It supports PRE/POST bronchodilator comparison.
4. What does optional oximetry add?
With the correct configuration, it adds spot SpO₂ and pulse-rate measurement.
5. How should the reusable turbine be maintained?
It must be cleaned and disinfected between patients according to manufacturer instructions and local protocols.
