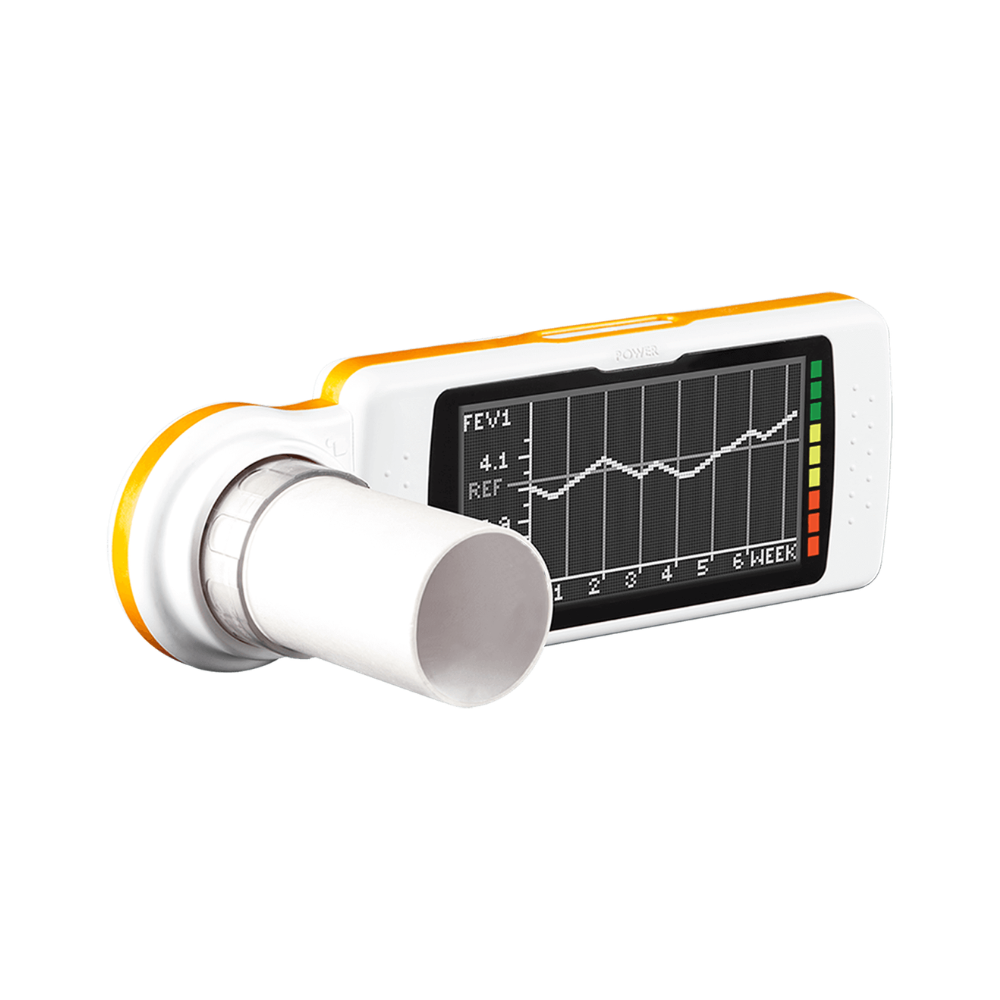

MIR Spirodoc

The MIR Spirodoc® is a professional portable touchscreen spirometer designed for lung function testing wherever respiratory assessment is required. Its handheld format makes it suitable for hospitals, respiratory clinics, physician practices, occupational health programmes, rehabilitation facilities, teaching environments and community healthcare settings.

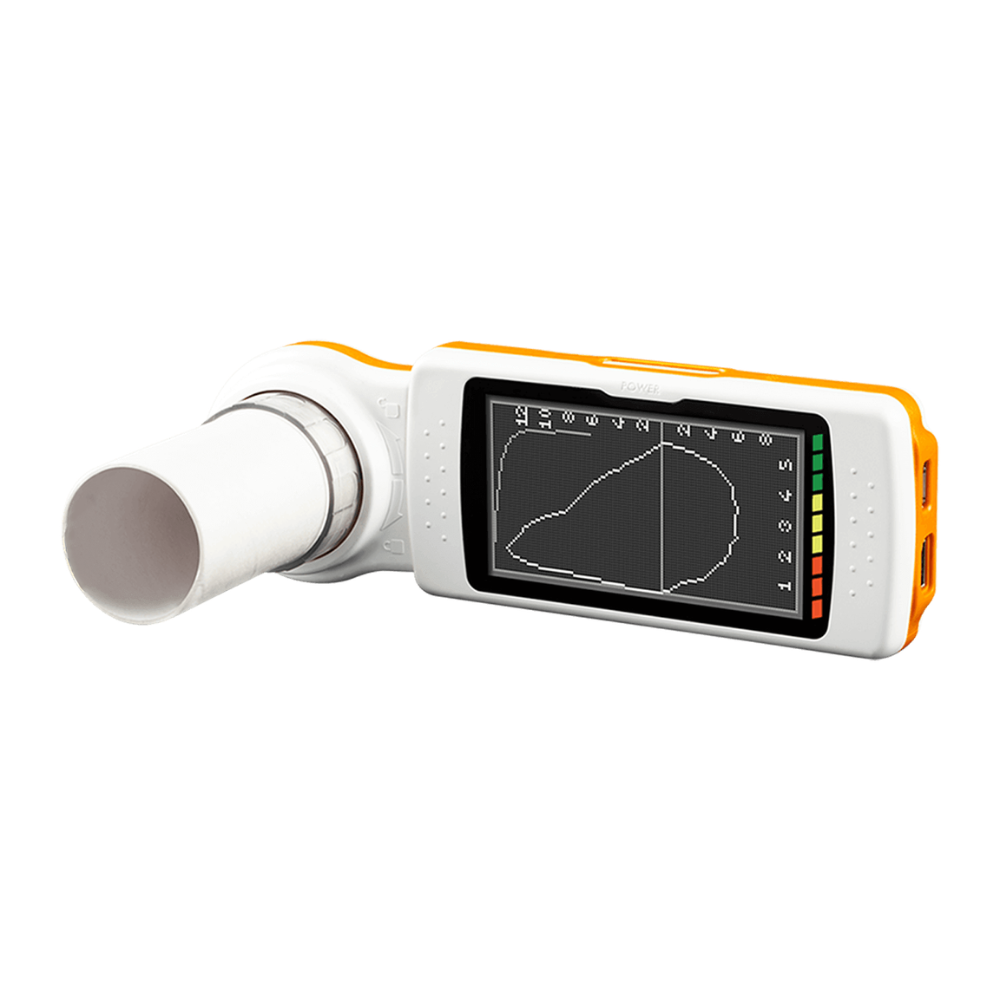

The touchscreen supports patient data entry, test selection, and result review, while the removable flowmeter housing helps clinicians position the test more easily around seated, mobile or harder-to-position patients.

The Spirodoc® uses MIR’s bi-directional digital turbine flow sensor to support accurate airflow and volume measurement with low airflow resistance. It supports key spirometry, including FVC, VC, IVC, MVV and PRE/POST bronchodilator comparison.

The device can be used with reusable MIR turbines or FlowMIR® disposable turbines, allowing facilities to match their turbine choice to hygiene procedures, patient volume or teaching requirements.

For practices that need more than spirometry alone, Spirodoc® can be configured with optional 3D oximetry for SpO₂, pulse rate, movement, body position, 6MWT, sleep test and 24-hour SpO₂ Holter system when configured.
USB and Bluetooth® connectivity support digital data transfer and compatible MIR software system for reporting, review and patient record management.

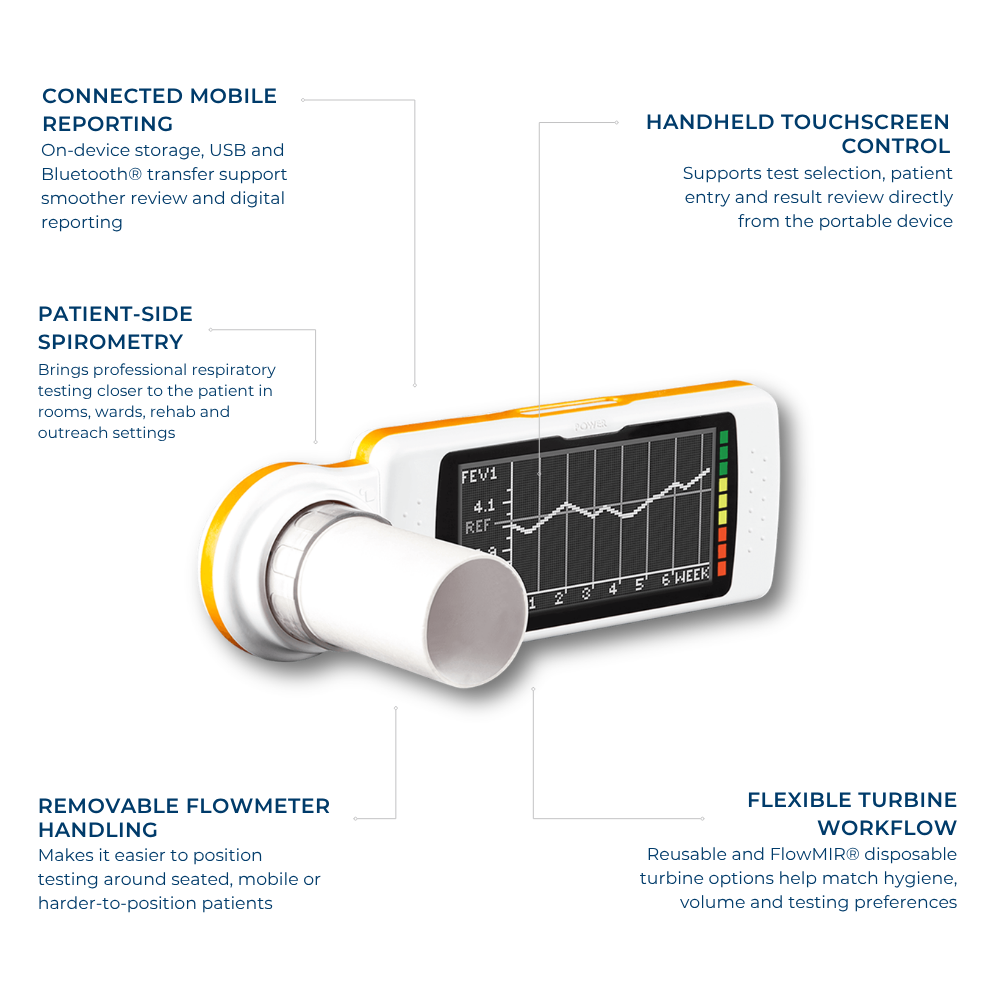

Features:

• Professional Handheld Spirometry: Supports portable lung function testing in consulting rooms, wards, rehab and outreach environments.
• Touchscreen Device: Enables patient data entry, test selection and result review directly on the device.
• Removable Flowmeter Handling: Helps clinicians adapt the test setup around patient position and clinical setting.
• Bi-Directional Digital Turbine: Supports accurate airflow and volume measurement with low airflow resistance.
• Reusable or FlowMIR® Turbine Options: Allows practices to choose between reusable and disposable turbines.
• USB & Bluetooth® Connectivity: Supports data transfer and compatible MIR software reporting.
• Optional 3D Oximetry: Adds extended SpO₂, pulse-rate, movement and body-position when configured.

Benefits:

• Supports professional spirometry outside a fixed testing station.
• Helps clinicians test patients in rooms, wards, rehab and outreach settings.
• Supports flexible turbine system for daily clinical, teaching or screening use.
• Stores tests on the device for later review or transfer.
• Supports connected digital reporting through MIR software.
• Adds optional advanced respiratory monitoring where clinically required.

Additional 3D Oximetry Option

• The optional 3D oximetry configuration adds oxygen saturation, pulse-rate, movement and body-position data to the assessment system.
• Adds SpO₂ and pulse-rate measurement alongside spirometry
• Supports 6MWT, sleep test and 24hrs SpO₂ Holter systems
• Helps connect oxygen saturation trends with movement and body position
• Useful for practices needing extended respiratory monitoring beyond routine spirometry

Best Suited For:

• Pulmonologists
• Respiratory Physicians
• General Practitioners
• Physiotherapists
• Pulmonary Rehabilitation Clinics
• Hospitals
• Occupational Health Clinics
• Universities and Medical Training Institutions
• Respiratory Laboratories
• Community Healthcare Professionals

Specifications:

• Product Name: MIR Spirodoc®
• Brand: MIR Medical International Research
• Product Type: Portable touchscreen spirometer
• Display: 7.1cm monochrome LCD touchscreen, 160 x 80 pixels
• Flow Sensor: Bi-directional digital turbine
• Turbine Options: Reusable MIR turbine or FlowMIR® disposable turbine
• Supported Tests: FVC, VC, IVC, MVV and PRE/POST bronchodilator comparison
• Flow Range: ±16L/s
• Volume Accuracy: ±2.5% or 50mL
• Flow Accuracy: ±5% or 200mL/s
• Memory Capacity: Up to 10,000 spirometry tests
• Connectivity: USB 2.0, Bluetooth® 2.1
• Power Supply: Rechargeable lithium-ion 3.7V, 1100mAh battery
• Battery Life: Up to approximately 50hrs
• Main Body Dimensions: 10.1cm x 4.8cm x 1.6cm
• Main Body Weight: 99g including battery pack
• Turbine Housing Dimensions: 4.7cm x 4.6cm x 2.4cm
• Turbine Housing Weight: 17g
• Mouthpiece Diameter: Ø3cm
• Certification: CE marked medical device
• Oximetry*: Optional 3D oximetry when configured
• Oximetry Memory*: Up to 300hrs oximetry when configured

Warranty:

The manufacturer provides a 12-month warranty for professional healthcare use. Warranty covers manufacturing defects, with repair or replacement at the manufacturer’s discretion. Consumables, batteries, turbines, misuse, accidental damage, unauthorised repairs and improper maintenance are excluded.

What is Included:

The standard spirometry package includes:

• MIR Spirodoc portable spirometer
• Rechargeable battery
• USB cable
• Power supply/charger
• User documentation

Ordering Notes: Turbines, Mouthpieces and Filters

Select one setup when ordering. These items are sold separately and are not included as standard.

Combination 1: FlowMIR® Disposable Turbine Setup

• FlowMIR® disposable turbines with integrated mouthpiece — boxes of 10 or 60

Combination 2: Reusable Turbine with Adult Disposable Mouthpieces

• Reusable MIR turbine
• Adult disposable mouthpieces — pack of 100 (Standard disposable mouthpieces currently sold in SA are not compatible with MIR turbines.)

Combination 3: Reusable Turbine with Paediatric Reusable Mouthpiece

• Reusable MIR turbine
• Plastic reusable paediatric mouthpiece

Filter Add-On

• Bacterial/viral filters can be ordered separately.

Optional Add-On: 3D Oximetry

• 3D oximetry is available as an additional configuration only. It is not included as standard and must be requested when ordering.

FAQs:

1. Should I choose a reusable or disposable turbine?
   Reusable turbines suit routine daily spirometry where the practice follows its cleaning and disinfection process. FlowMIR® disposable turbines are useful where single-patient turbine use is preferred.


2. Can Spirodoc® store tests without a computer?
   Yes. The device stores up to 10,000 spirometry tests for later review or transfer.


3. What does optional 3D oximetry add?
   With the correct configuration, it supports SpO₂, pulse-rate, movement, body-position, 6MWT, sleep test and 24hrs SpO₂ Holter systems.


4. Can Spirodoc® support digital reporting?
   Yes. USB and Bluetooth® connectivity support compatible MIR software system for reporting and patient record management.


5. Does the turbine need routine calibration?
   Routine turbine calibration is not required, although calibration checks can be performed according to MIR software and facility procedures.
