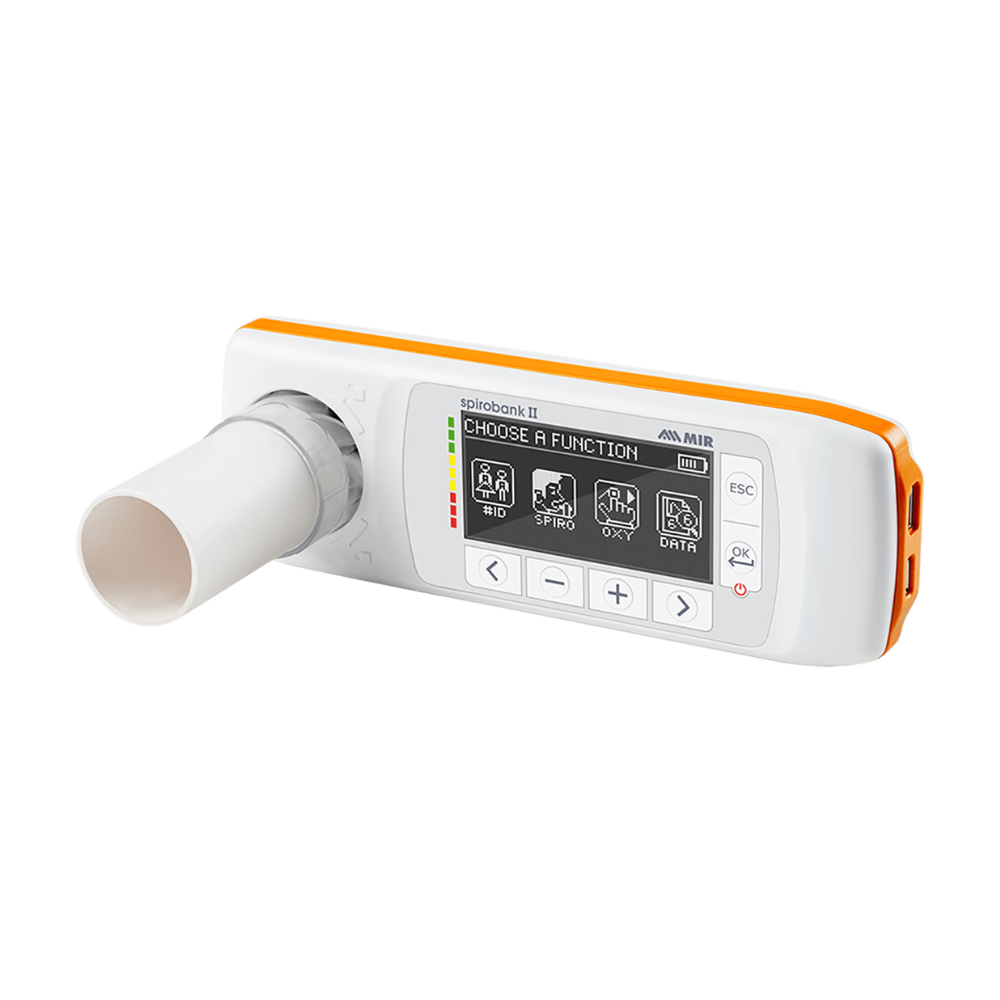

The MIR Spirobank® II Smart is a professional portable diagnostic spirometer designed for flexible respiratory assessment in clinical, occupational health, screening and specialist healthcare environments.
It can be used as a stand-alone handheld device, connected to a compatible PC via USB, or paired with a compatible tablet via Bluetooth® using the MIR Spiro App. This makes it suitable for practices that want one device across multiple testing setups.
Test curves and results can be viewed directly on the device, tablet or PC, supporting review during the testing session.
The device supports FVC, VC, IVC, MVV and PRE/POST bronchodilator comparison. Its integrated temperature sensor supports automatic BTPS conversion, while predicted values and traffic-light guidance help clinicians review results efficiently.
The Spirobank® II Smart also supports paediatric incentive features through compatible software systems and can be used with reusable MIR turbines or FlowMIR® disposable turbines.
Optional oximetry can add spot SpO₂ and pulse-rate measurement when configured.
Features:

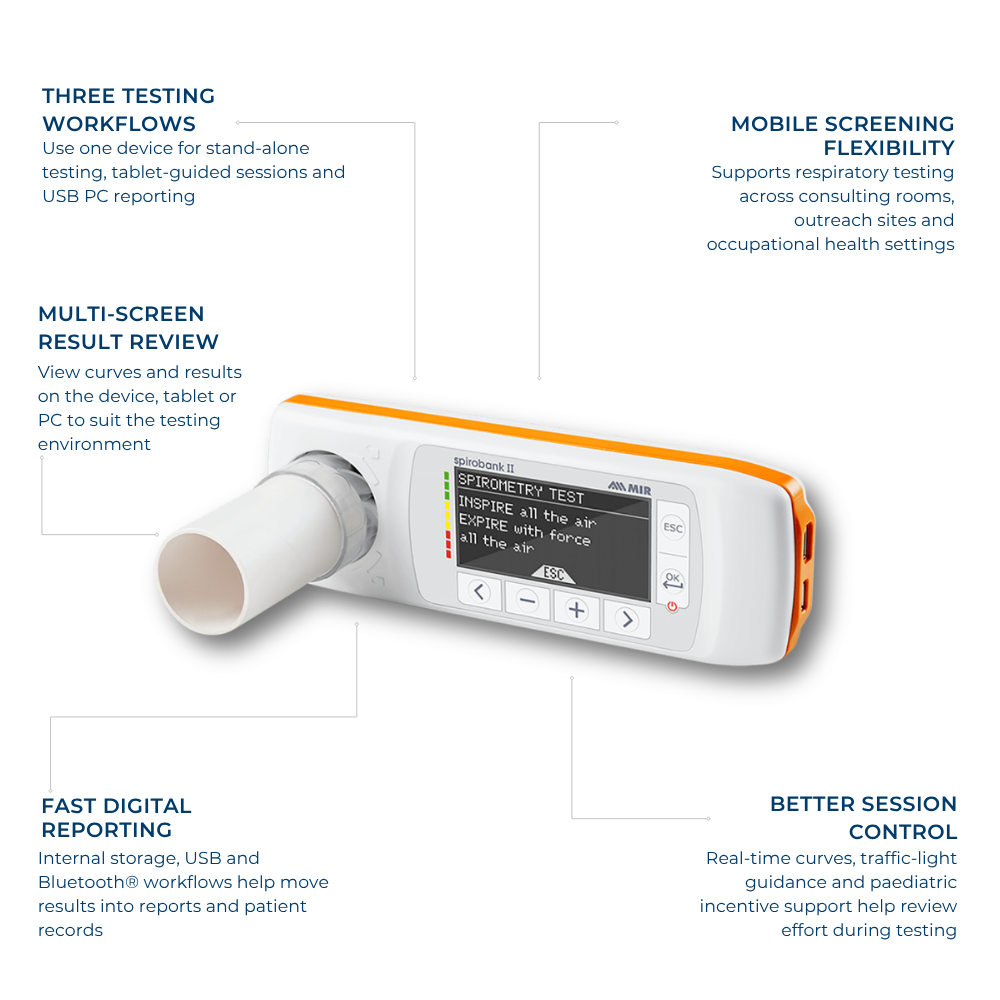

- Three Operating Modes: Use stand-alone, via USB PC connection, or with a tablet via Bluetooth®.
- Real-Time Multi-Screen Review: View curves and results on the device, tablet or PC.
- Comprehensive Spirometry Testing: Supports FVC, VC, IVC, MVV and PRE/POST testing.
- Automatic BTPS Conversion: Integrated temperature sensor supports automatic BTPS conversion.
- Traffic-Light Interpretation: Supports faster result review during testing.
- Paediatric Incentive Support: Compatible software animations help encourage cooperation.
- Reusable or FlowMIR® Turbine Options: Supports different clinical and hygiene.
- Optional Spot Oximetry: Adds SpO₂ and pulse-rate checks when configured.
Benefits:
- Supports one device across multiple testing operations.
- Useful for consulting rooms, screening environments and outreach services.
- Allows review on the device, tablet or PC.
- Helps teams move results into digital reports and records.
- Supports reusable or disposable turbine operations.
- Adds spot oximetry when clinically required.
Best Suited For:
- Respiratory Physicians
- Pulmonologists
- General Practitioners
- Occupational Health Clinics
- Hospitals
- Primary Healthcare Clinics
- Lung Function Laboratories
- Sports Medicine Physicians
- Paediatric Clinics
- Clinical Research Facilities
Optional Oximetry Option
- The optional oximetry configuration adds spot SpO₂ and pulse-rate measurement to the respiratory assessment operation.
- Adds oxygen saturation and pulse-rate checks
- Supports broader respiratory review during screening
- Available when the correct oximetry configuration is supplied
Specifications:
- Product Name: MIR Spirobank® II Smart
- Brand: MIR Medical International Research
- Product Type: Portable stand-alone, tablet and USB PC diagnostic spirometer
- Main Workflow: Stand-alone spirometry with tablet and PC connectivity
- Display: Monochrome LCD, 160 x 80 pixels
- Supported Tests: FVC, VC, IVC, MVV and PRE/POST bronchodilator comparison
- Flow Sensor: Bi-directional digital turbine
- Turbine Options: Reusable MIR turbine or FlowMIR® disposable turbine
- Connectivity: USB 2.0 and Bluetooth® 4.0
- Memory Capacity: Up to 10,000 tests
- Power Supply: Rechargeable lithium-ion 3.7V, 1100mAh battery
- Battery Runtime: Up to approximately 50hrs
- Dimensions: 16cm x 5.5cm x 2.5cm
- Weight: 140g including battery
- Volume Accuracy: ±2.5% or 50mL
- Flow Accuracy: ±5% or 200mL/s
- Mouthpiece Diameter: Ø3cm
- Compliance: ATS/ERS 2005 and 2019 update; ISO 23747:2015; ISO 26782:2009
- Certification: CE marked medical device
- Oximetry*: Optional spot SpO₂ and pulse-rate measurement when configured
- Oximetry Memory*: Up to 300 hours of oximetry when configured
What is Included:
- MIR Spirobank® II Smart spirometer
- Rechargeable battery pack
- USB cable
- User documentation
Ordering Notes: Turbines, Mouthpieces and Filters
Select one setup when ordering. These items are sold separately and are not included as standard.
Combination 1: FlowMIR® Disposable Turbine Setup
Combination 2: Reusable Turbine with Adult Disposable Mouthpieces
Combination 3: Reusable Turbine with Paediatric Reusable Mouthpiece
Filter Add-On
Optional Add-On: Oximetry
Warranty:
The manufacturer provides a 12-month warranty for professional healthcare use. Warranty covers manufacturing defects, with repair or replacement at the manufacturer’s discretion. Consumables, batteries, turbines, misuse, accidental damage, unauthorised repairs and improper maintenance are excluded.
FAQs:
1. What makes Spirobank® II Smart different from Basic?
It supports three operations: stand-alone testing, USB PC reporting and Bluetooth® tablet use.
2. Can I use it without a computer?
Yes. It can be used as a stand-alone spirometer and can also connect to a tablet or PC.
3. Can I choose reusable or disposable turbines?
Yes. It is compatible with reusable MIR turbines and FlowMIR® disposable turbines.
4. What does the optional oximetry configuration add?
It adds spot SpO₂ and pulse-rate measurement when configured.
5. Is it suitable for mobile screening?
Yes. Its handheld design, rechargeable battery, memory and multi-platform workflow suit mobile, outreach and occupational health testing.
