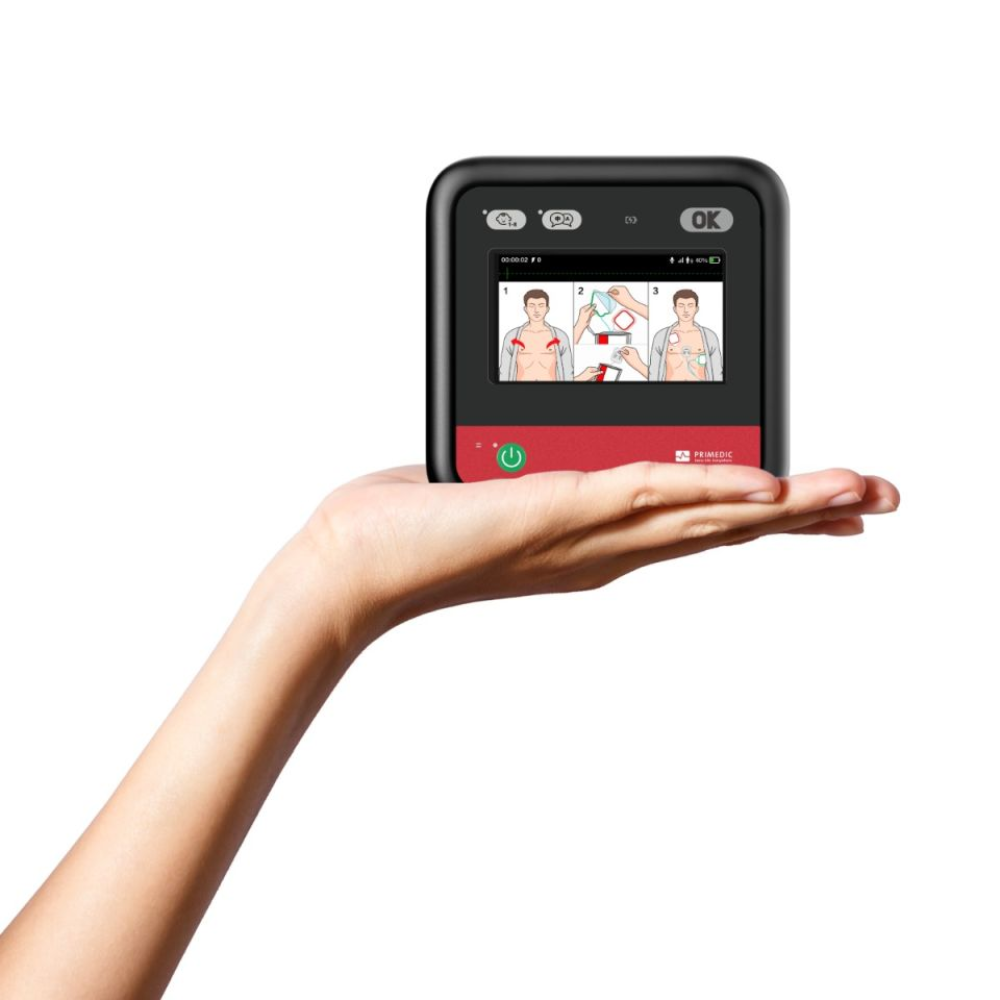

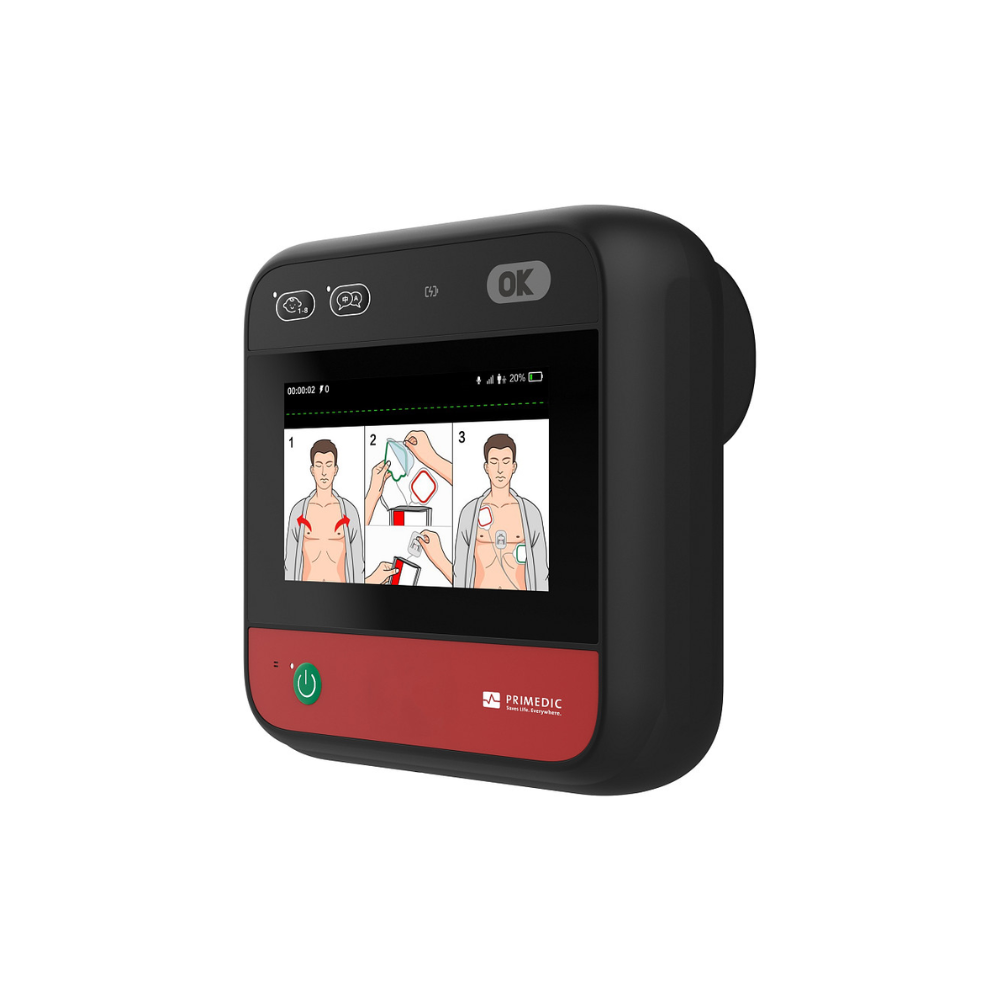

The HeartSave myPAD Fully Automated External Defibrillator (AED) with LCD Display combines automatic ECG analysis with Fully Automated shock delivery and clear audio-visual guidance. The 4.3" colour LCD presents animated operating information alongside spoken prompts, providing an easy-to-follow interface through the rescue sequence.
The device manages an advised shock automatically following its warning and countdown, reducing the number of manual actions required during defibrillation. Adult and child modes support different patient groups, while biphasic technology automatically compensates for patient impedance. The display also provides ECG waveform animation and key operating information directly on the device.
Compact construction supports convenient placement and transport, while automatic self-tests and visible status information simplify routine readiness monitoring. Waterproof and dustproof protection supports long-term placement across professional and public-access environments. Bluetooth provides local configuration, with optional Wi-Fi + LTE available for remote device management and monitoring.
Clear Visual Guidance: Voice prompts and animated screen information provide two complementary forms of operating guidance.
The colour LCD displays visual instructions, patient-mode information and ECG waveform animation alongside spoken prompts.
Automatic Shock Delivery: Fully Automated operation reduces the number of manual actions required during defibrillation.
When defibrillation is advised, the device manages the shock sequence automatically following its safety warning and countdown.
Built For Long-Term Readiness: Automatic checks and clear device information support dependable day-to-day availability.
Self-testing, visible status information and waterproof and dustproof protection help keep the AED prepared and accessible between uses.
Best Suited For:
- Workplaces, offices and corporate facilities
- Schools and educational facilities
- Retail, hospitality and commercial environments
- Healthcare and care facilities
- Community centres, sports facilities and public spaces
- Transport hubs and other public-access locations
- Facilities where additional screen-based visual guidance is preferred
All Features:
- Fully Automated Shock Delivery: Manages an advised shock automatically following warning and countdown.
- Automatic ECG Analysis: Evaluates the heart rhythm and determines whether defibrillation is required.
- 3" Colour LCD: Provides clear on-screen operating information.
- Animated Visual Guidance: Uses screen graphics to support the rescue workflow.
- ECG Waveform Animation: Displays the single-channel ECG waveform during operation.
- Voice Guidance: Spoken prompts complement the visual operating information.
- Adult & Child Modes: Supports both adult and paediatric defibrillation.
- Biphasic Defibrillation: Automatically compensates according to patient impedance.
- Automatic Self-Tests: Periodically checks key device functions and readiness.
- On-Screen Status Information: Displays patient mode, battery and operating information.
- Multiple Language Support: Supports up to 6 configured languages.
- Bluetooth Configuration: Supports local connection to the compatible PRIMEDIC configuration app.
- Internal Data Recording: Stores ECG, therapy, event, system and audio information.
- USB Data Export: Supports authorised retrieval of recorded event data.
- Compact & Lightweight Design: Supports convenient placement and transport.
- Waterproof Protection: Provides environmental protection against water exposure.
- Dustproof Protection: Protects the enclosure against dust ingress.
- Durable Construction: Designed for long-term emergency-device placement.
Technical Specifications:
- Product Name: HeartSave myPAD Fully Automated External Defibrillator (AED) with LCD Display
- Brand: PRIMEDIC
- Device Type: Fully Automated External Defibrillator
- Shock Delivery: Fully Automated
- Display:3" colour LCD
- Display Resolution: 800 × 480
- ECG Display: Single-channel waveform animation
- Voice Guidance: Yes
- Adult / Child Modes: Yes
- ECG: Integrated single-channel ECG
- Waveform: Biphasic truncated exponential
- Patient Impedance: Automatic compensation
- Adult Energy Sequence: 150J / 170J / 200J
- Child Energy Sequence: 50J / 50J / 50J
- Applicable Impedance Range: 25–200Ω
- Electrode Type: SavePads PLUS C
- Patient Use: Adult and child
- Battery: BATTERY 3C / NRL03C, non-rechargeable
- Operating Time: Up to 9 hours under specified test conditions
- Automatic Self-Tests: Yes
- Bluetooth: Yes
- Data Export: USB
- Languages: Up to 6 languages can be configured
- Dimensions:1 × 15.1 × 7.6cm (±0.2cm)
- Weight: 1.1kg (±0.2kg)
- Protection Rating: IP66 waterproof and dustproof
- Drop Test:6m
- Optional Remote Connectivity: Wi-Fi + LTE

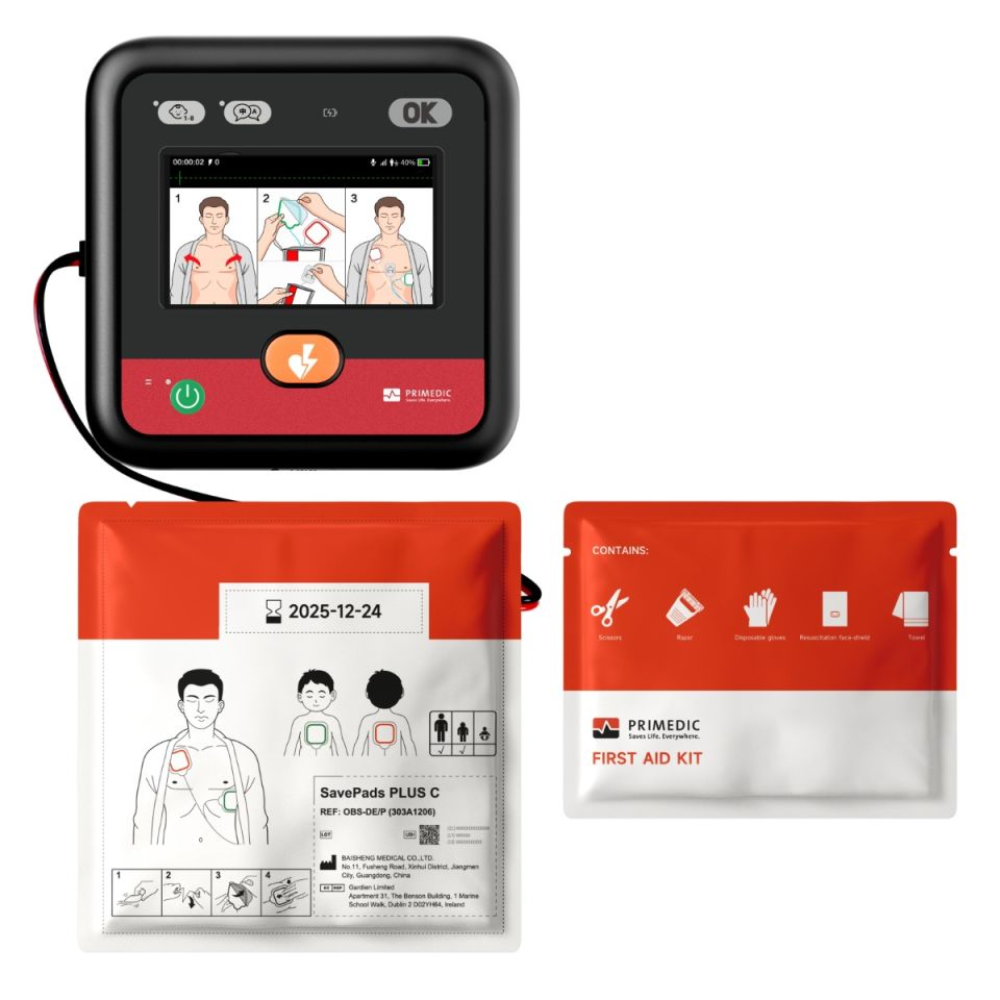

What's Included:
- HeartSave myPAD Fully Automated AED with LCD Display
- BATTERY 3C Non-Rechargeable battery
- SavePads PLUS C electrode set
Warranty:
8-year warranty against material and manufacturing defects, subject to manufacturer conditions.
*For suspected sudden cardiac arrest in a person 1 year and older who is unconscious and not breathing normally. Follow the device prompts and read the user manual before use for operating instructions, precautions and safety information.
Need A Different HeartSave myPAD Configuration?
Different configurations can be ordered to suit your specific requirements.
- Choose Your Shock Delivery
- Semi-Automated: AED advises the shock; the rescuer presses the shock button.
- Fully Automated: AED advises and delivers the shock automatically after warning and countdown.
- Choose Your Display
- Graphic LED: Voice prompts with illuminated indicators and graphic guidance.
- 3" Colour LCD: Adds animated visual guidance, ECG waveform and on-screen information.
- 3" Touch LCD: Adds touchscreen control to the colour LCD interface.
- Choose Your Electrodes
- SavePads PLUS C: Adult and child electrodes without CPR feedback.
- SavePads PLUS CS: Adult and child electrodes with CPR compression-rate and depth feedback.
- Choose Your Battery
- BATTERY 3C – Non-Rechargeable: Long-standby battery with no routine charging.
- BATTERY 3G – Rechargeable: Rechargeable battery used with the PRIMEDIC charging adapter.
- Choose Your Connectivity
- Bluetooth + Wi-Fi: Adds Wi-Fi remote device management and monitoring.
- Bluetooth + LTE: Adds mobile-network remote device management and monitoring.
- Bluetooth + Wi-Fi + LTE: Adds both Wi-Fi and LTE remote connectivity.
Frequently Asked Questions (FAQs):
- What additional information does the LCD provide?
The colour screen provides animated operating guidance, adult or child mode information, battery status, ECG waveform animation and network status where applicable.
- Is the LCD a touchscreen?
No. This model uses the standard 4.3" colour LCD. PRIMEDIC identifies touchscreen models separately.
- Does Fully Automated mean the AED can deliver a shock without analysing the heart rhythm?
No. Fully Automated refers to how an advised shock is delivered. The AED analyses the ECG first and only enters the shock sequence when a shockable rhythm is identified.
- What happens immediately before an automatic shock?
The device warns the user not to touch the patient and provides a countdown before the advised shock is delivered automatically.
- Can the ECG waveform on the screen be used for diagnosis?
No. The displayed ECG waveform supports AED operation and electrode application; it is not intended for diagnostic interpretation.
- How does child mode work?
Child mode reduces the defibrillation energy for younger patients while retaining the same core operating workflow.
- Does the AED need Wi-Fi or LTE for the LCD or defibrillation to work?
No. The display, ECG analysis and defibrillation operate independently of network connectivity. Wi-Fi + LTE is used for remote device management and monitoring.
- How does the AED check that it is ready for use?
Automatic self-tests monitor key systems at scheduled intervals, while the device provides visible readiness and operating-status information.
