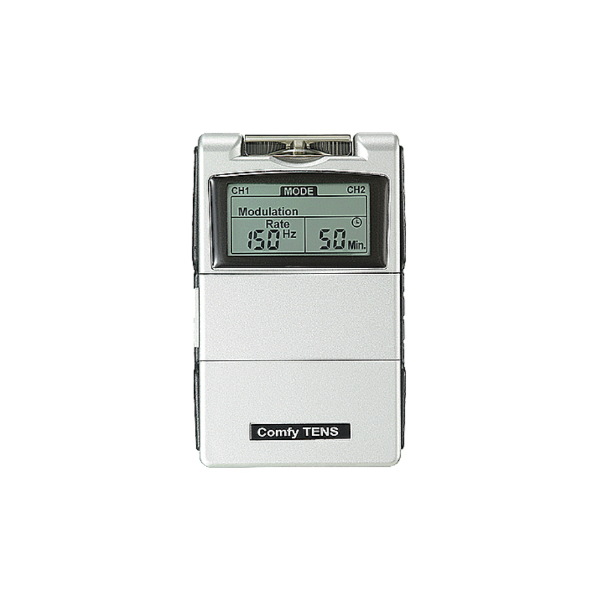

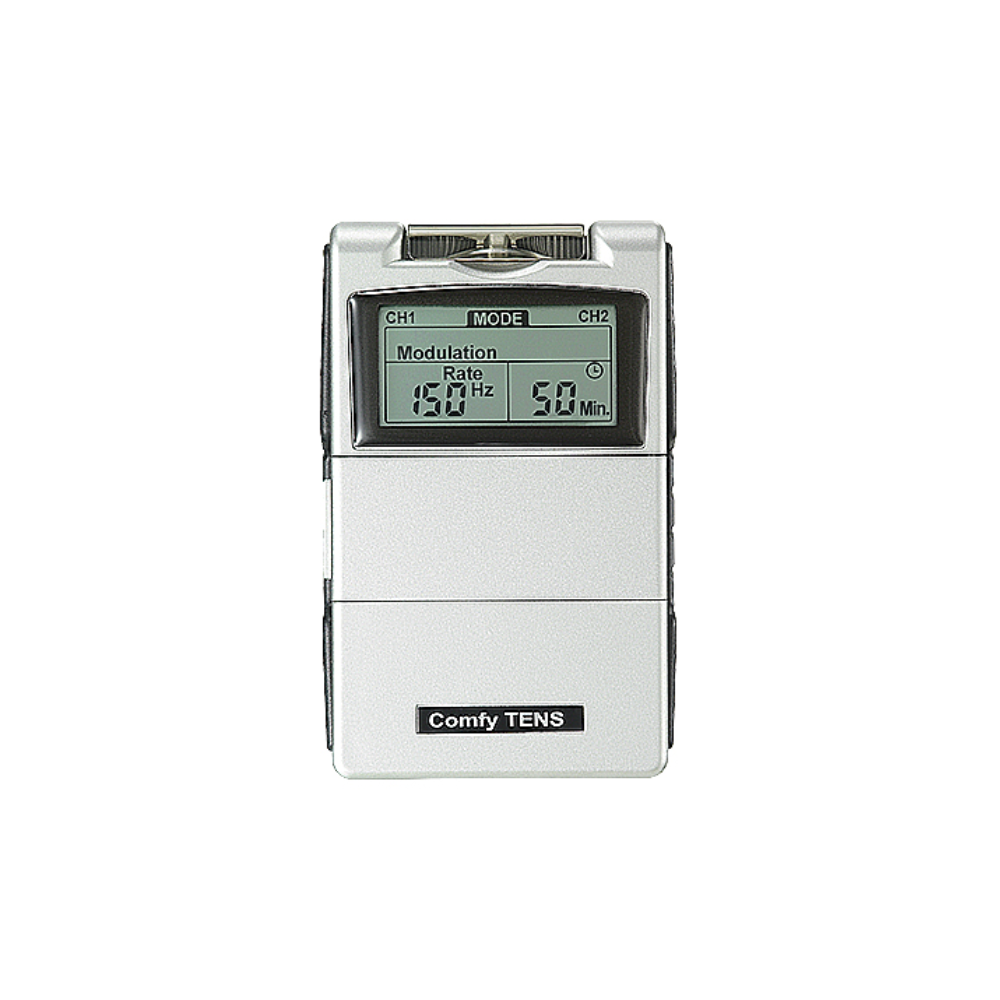

The EV-804 TENS unit sends comfortable stim impulses through the skin that stimulate the nerve in the treatment area, acting as an electric massager, and calming the nerve.
The EV-804 TENS is a battery-operated pulse generator that sends electrical impulses through electrodes to the body and reaches the nerves causing pain. The device is provided with two controllable output channels, each independent of the other. An electrode pair can be connected to each output channel.
The electronics of the EV-804 TENS create electrical impulses whose Intensity, duration, number per second and modulation may be altered with the controls/switches. Press buttons are very easy to use and the large liquid crystal display showing the exact model and values of parameters is very convenient for patients.
Features:

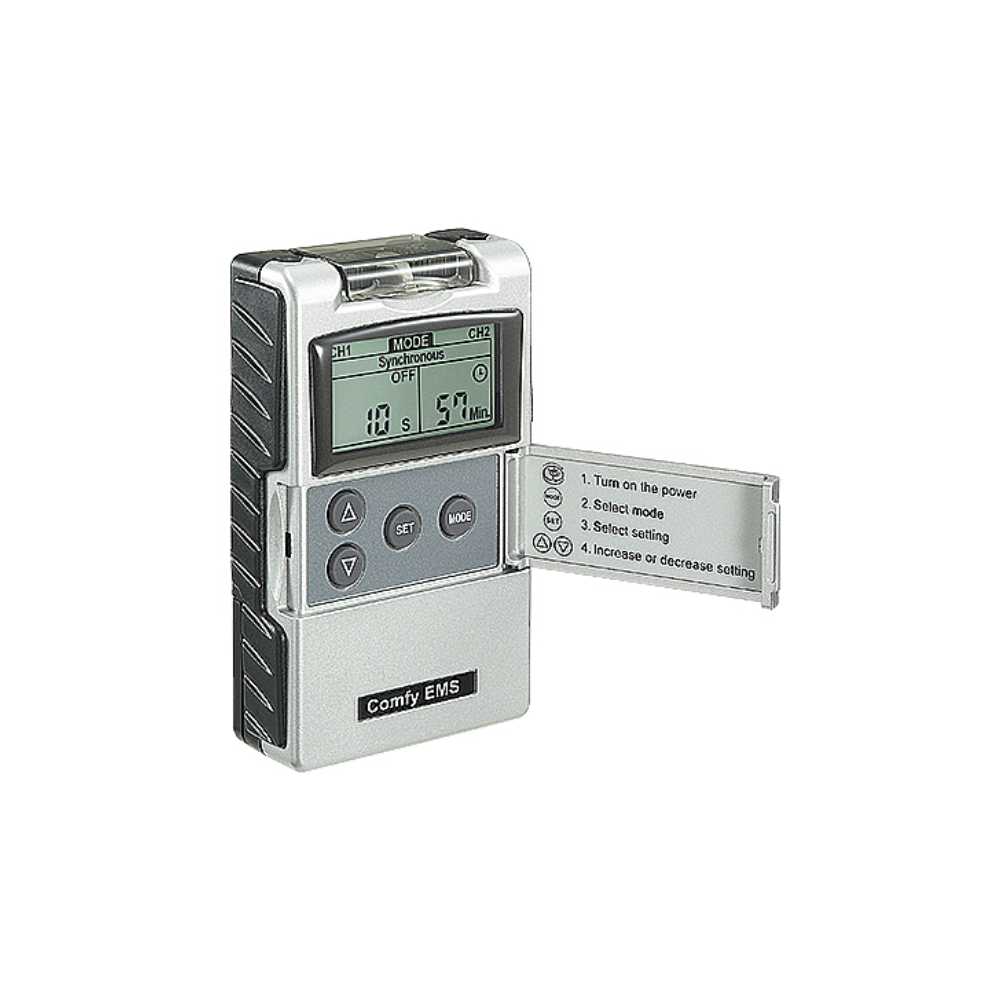

- Flip-top cover
- 5 modes of option
- Protective strips on both sides of the unit
- Large LCD display with all settings
- Easy-to-use button control
- Simple user manual on the cover
Technical Parameters:
- Pulse amplitude: Adjustable, 0-100 mA peak into 500 ohm load
- Waveform: Asymmetric biphasic square pulse
- Dimensions: 10.1 cm (L) x 6.1 cm (W) x 2.45 cm (H)
- Weight: 150 grams with battery
- Pulse frequency: Adjustable, from 2 to 150 Hz, 1 Hz/Step
- Pulse width: Adjustable, from 50 to 300 microseconds, 10 µs/step
- Modes: B (Burst), N (Normal), M (Modulation), SD1 (Strength duration), SD2
- Timer: Adjustable, from 5 to 60 minutes or continuous.
What is Included:
- 1 x EV-804 Unit
- 1 x Pack of 4 Electrodes
- 1 x 9V Battery
- 2 x Leads
- 1 x User Manual
- 1 x Carry Case
Nappi Code: None
Warranty:
This model carries a warranty of 1 Year from the date of purchase. The warranty applies to the simulator only. The warranty does not apply to the leads or electrodes.
